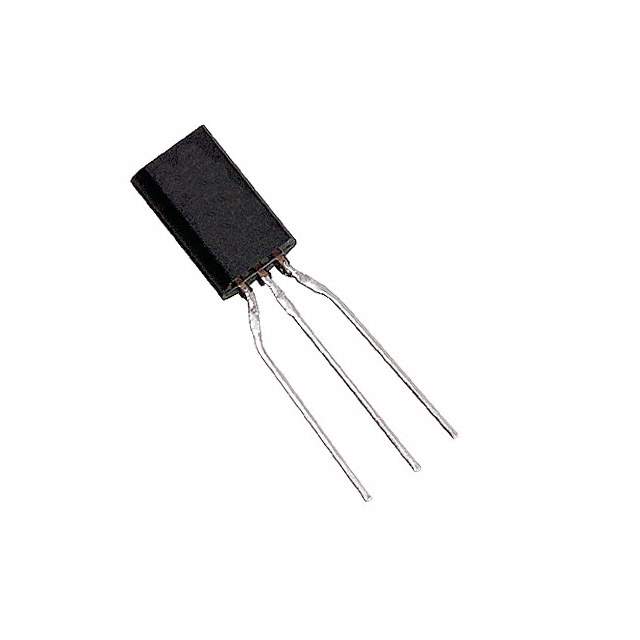

2SD12110R Real Image
Same model may have multiple batches, images only for reference.

2SD12110R

Part No 2SD12110R
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 120V 0.5A TO-92L
Datasheet
2SD12110R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 500mA
Voltage - Collector Emitter Breakdown (Maximum) 120V
Vce Saturation (Maximum) @ Ib, Ic 1V @ 30mA, 300mA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 130 @ 150mA, 10V
Power - Max 1W
Frequency - Transition 200MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-226-3, TO-92-3 Long Body
Manufacturer Package TO-92L-A1
Win Source Part Number 762779-2SD12110R
Popularity Medium
Supply and Demand Status Limited
Family Name 2SD1211
Introduction Date October 09, 1998
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SD12110R CAD Model

Description

The Panasonic Electronic Components 701159 is a through-hole NPN transistor.

  • Maximum collector-emitter breakdown voltage: 120V
  • Maximum current collector: 500mA
  • Package: TO-226-3 and TO-92-3 long body
  • Maximum power: 1W
  • Frequency transition: 200MHz
