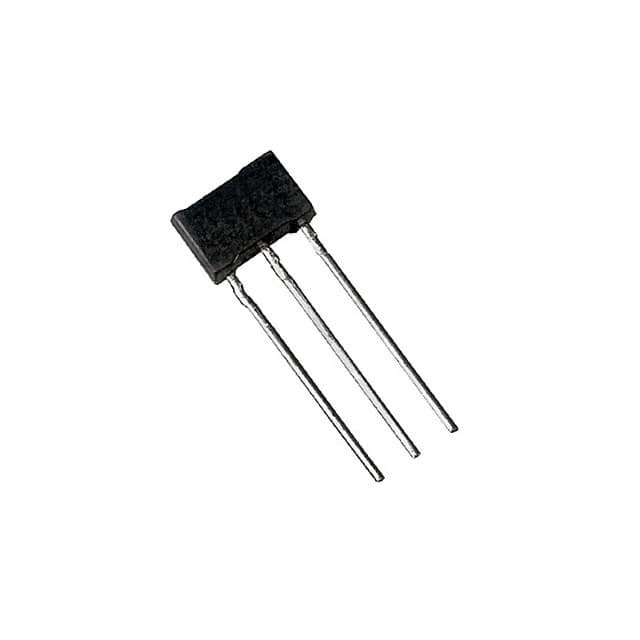

Same model may have multiple batches, images only for reference.
2SD22490RA
Same model may have multiple batches, images only for reference.

2SD22490RA

Part No 2SD22490RA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 20V 5A MT-2
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Bipolar (BJT) Transistor NPN 20 V 5 A 150MHz 1 W Through Hole MT-2-A1
Manufacturer Panasonic
Package Cut Tape (CT), Tape & Box (TB)
Part Status Obsolete
Operating Temperature Range 150°C (TJ)
Mounting Through Hole
Package 3-SIP
Case / Package MT-2-A1
Family Name 2SD2249
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0075
Other Part Number 2SD22490RATB, 2SD22490RACT-NDR, 2SD2249-R(TA), 2SD22490RACT, 2SD22490RATB-NDR
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906401-2SD22490RA
Ultra Librarian 3D Model Ultra Librarian 2SD22490RA CAD Model

Description

Panasonic's bipolar (BJT) transistor is a discrete semiconductor product that comes in cut tape (CT) and tape & box (TB) packaging.

  • Part Number: 906401-2SD22490RA
  • Type: NPN
  • Voltage Rating: 20V
  • Current Rating: 5A
  • Frequency: 150MHz
  • Mounting: Through-hole
  • Power Rating: 1W
  • Applications: Various
  • Status: Obsolete
  • ECCN: EAR99
