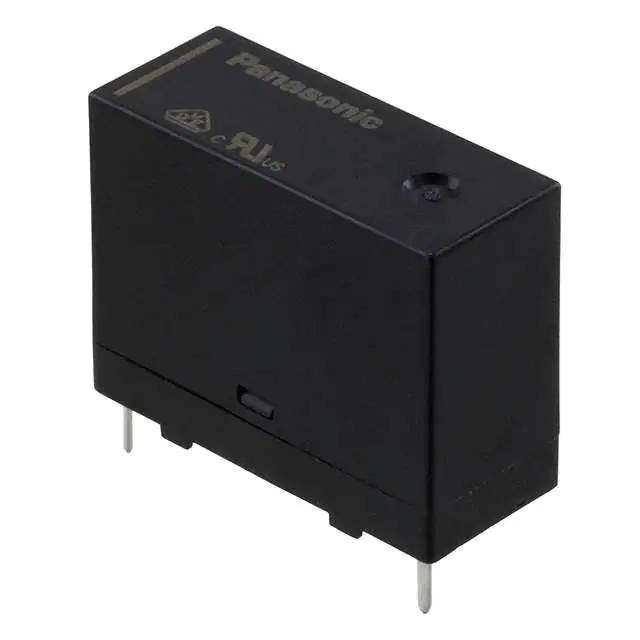

ADW1105HTW Real Image
Same model may have multiple batches, images only for reference.

ADW1105HTW

Part No ADW1105HTW
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DW-H
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 277VAC - Max
Coil Current 40 mA
Coil Type Latching, Single Coil
Features IEC Compliant
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 4 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 125 Ohms
Base Product Number ADW1105
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 911133-ADW1105HTW
Ultra Librarian 3D Model Ultra Librarian ADW1105HTW CAD Model

Description

The ADW1105HTW is a power relay from Panasonic's DW-H series. This relay is designed for high-power switching applications and offers a reliable and efficient solution.

  • Termination Style: PC Pin
  • Package: Tray
  • Contact Form: SPST
  • Contact Material: Silver Tin Oxide
  • Coil Resistance: 125 Ohms
  • Coil Current: 40 mA
  • Operate Time: 15 ms
  • Coil Voltage: 5VDC
  • Contact Rating: 16A
  • Switching Voltage: 277VAC maximum
  • Seal Rating: Sealed, Flux Protection
  • Operating Temperature: -40°C to 85°C
