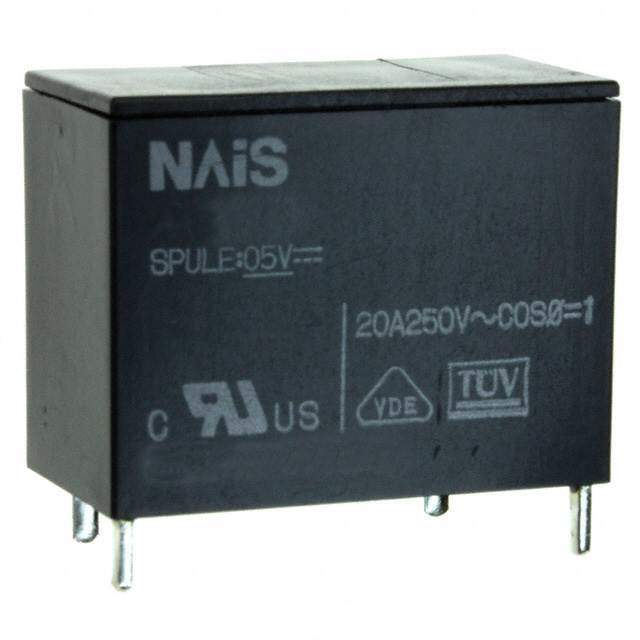

ALF1P05 Real Image
Same model may have multiple batches, images only for reference.

ALF1P05

Part No ALF1P05
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 20A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ALF
Package Box
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20 A
Switching Voltage 250VAC - Max
Coil Current 180 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 20 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 27.8 Ohms
Base Product Number ALF1P0
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Standard Package 50
Win Source Part Number 999854-ALF1P05
Ultra Librarian 3D Model Ultra Librarian ALF1P05 CAD Model

Description

The Panasonic Electric Works ALF1P05 is a general-purpose power relay with a coil voltage of 5VDC.

  • Manufacturer: Panasonic Electric Works
  • Part: ALF1P05
  • Coil Voltage: 5VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating (Current): 20A
  • Switching Voltage: 250VAC - Max
  • Coil Resistance: 27.8 ohms
  • Coil Current: 180mA
  • Temperature Range: -40°C to 60°C
  • Win Source Part Number: 999854-ALF1P05
