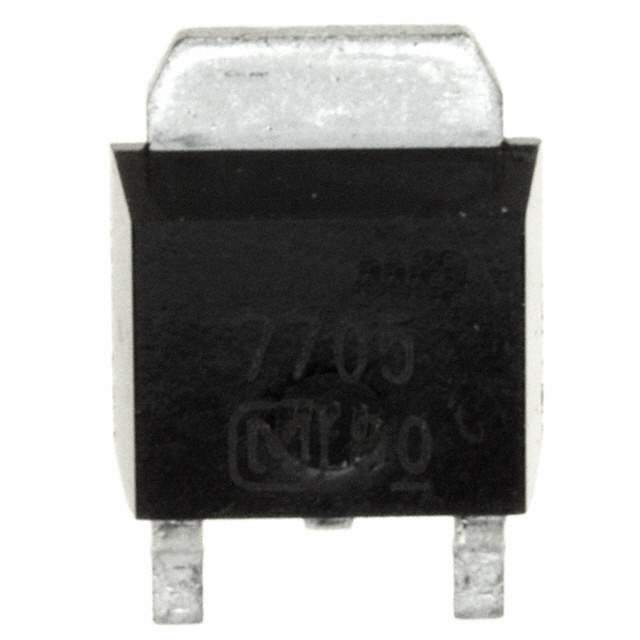

AN7705SP Real Image
Same model may have multiple batches, images only for reference.

AN7705SP

Part No AN7705SP
Manufacturer Panasonic
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 1.2A SP3SUA / LDO Regulator Pos 5V 1.2A 3-Pin(2+Tab) SP-3SU
Datasheet
AN7705SP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 16V
Output Voltage 5V
Output Current 1.2A
Operating Supply Current 5mA
PSRR 70dB (120Hz)
Protection Features Over Current, Over Temperature, Short Circuit
Operating Temperature Range 25°C ~ 125°C
Mounting SMD
Package TO-252-3, DPak (2 Leads + Tab), SC-63
Manufacturer Package SP-3SUA
Win Source Part Number 768522-AN7705SP
Popularity Medium
Supply and Demand Status Balance
Family Name AN7705SP
Introduction Date November 25, 2001
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AN7705SP CAD Model

Description

The Panasonic Electronic Components AN7705SP is an integrated circuit with a fixed output voltage of 5V and an output current of 1.2A.

  • Protection Features: Over current, over temperature, short circuit
  • Voltage Input MAX: 16V
  • Packaging: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Operating Temperature Range: 25°C ~ 125°C
  • Halogen-Free: Compliant
  • Supply and Demand Status: Balanced
