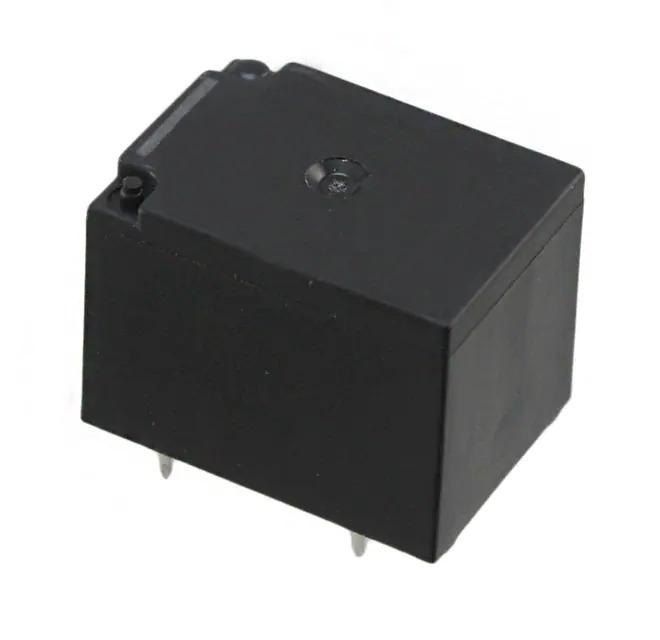

JS1-48V Panasonic
Same model may have multiple batches, images only for reference.

JS1-48V

Part No JS1-48V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 48V / General Purpose Relay SPDT (1 Form C) 48VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series JS
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 48VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 100VDC - Max
Coil Current 7.5 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation -
Must Operate Voltage 33.6 VDC
Must Release Voltage 4.8 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 6.4 kOhms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1355487-JS1-48V
Ultra Librarian 3D Model Ultra Librarian JS1-48V CAD Model

Description

The 1355487-JS1-48V, is a reliable and high-performance power relay from the JS series by Panasonic Electric Works suitable for various applications.

  • Coil Voltage: 48VDC
  • Contact Rating: 10A
  • Contact Form: SPDT (1 Form C)
  • Switching Voltage: 250VAC and 100VDC
  • Mounting Type: Through-Hole
  • Seal: Sealed
  • Must Operate Voltage: 33.6VDC
  • Must Release Voltage: 4.8VDC
  • Operating Time: 10ms
  • Release Time: 10ms
  • Product Status: Obsolete
