Same model may have multiple batches, images only for reference.

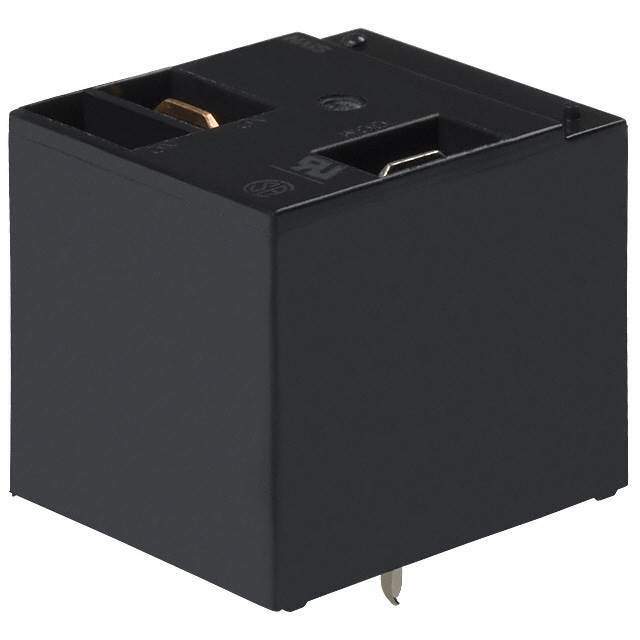

JTN1S-TMP-F-DC9V Real Image
Same model may have multiple batches, images only for reference.

JTN1S-TMP-F-DC9V

Part No JTN1S-TMP-F-DC9V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description High switching capacity 1a/1c 30A power relays Heating & ventilation Home appliance | RELAY GEN PURPOSE SPDT 20A 9V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Mounting Style Through Hole
Coil Voltage 9VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 20A
Switching Voltage 277VAC - Max
Coil Current 88.9mA
Coil Type Non Latching
Termination Style PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 6.75 VDC
Must Release Voltage 0.9 VDC
Operate Time 20ms
Release Time 10ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 101 Ohms
Manufacturer Pack Quantity 50
MSL Level Not Applicable
Win Source Part Number 1191775-JTN1S-TMP-F-DC9V
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian JTN1S-TMP-F-DC9V CAD Model

Description

The JTN1S-TMP-F-DC9V from Panasonic Electric Works is a general-purpose relay that has a contact rating (current) of 20A.

  • Contact Rating (Current): 20A
  • Switching Voltage: 277VAC - max
  • Coil Voltage: 9VDC
  • Contact Form: SPDT (1 Form C)
  • Contact Material: silver tin oxide (AgSnO)
  • Coil Resistance: 101 Ohms
  • Coil Current: 88.9mA
  • Operate Time: 20ms
  • Release Time: 10ms
  • Temperature Range: -55°C ~ 85°C
  • Manufacturer Homepage: www.panasonic.com/industrial/
  • Supply and Demand Status: balanced
