Same model may have multiple batches, images only for reference.

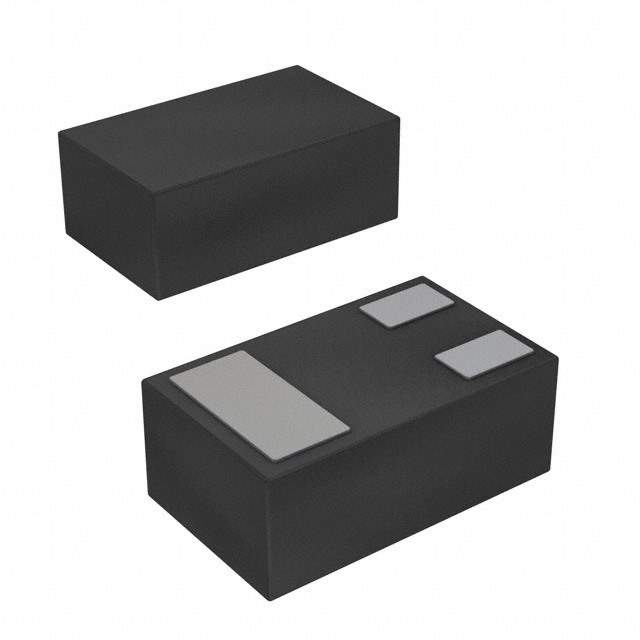

UNRF2AN00A Real Image
Same model may have multiple batches, images only for reference.

UNRF2AN00A

Part No UNRF2AN00A
Manufacturer Panasonic
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS NPN 100MW ML3-N2
Datasheet
UNRF2AN00A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity NPN - Pre-Biased
Maximum Current Collector 80mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 4.7k
Resistor - Emitter Base (R2) (Ohms) 47k
Typical Gain (hFE) (Min) 80 @ 5mA, 10V
Max Vce (sat) 250mV @ 300μA, 10mA
Collector Cut-off Current(Max) 500nA
Frequency - Transition 150MHz
Maximum Power Dissipation 100mW
Mounting SMD (SMT)
Case / Package ML3-N2
Win Source Part Number 036094-UNRF2AN00A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UNRF2AN00A CAD Model

Description

The Panasonic Electronic Components 036094-UNRF2AN00A is a discrete semiconductor product that is used in various electronic devices.

  • Frequency Transition: 150MHz
  • Maximum Current Collector: 80mA
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Balanced
