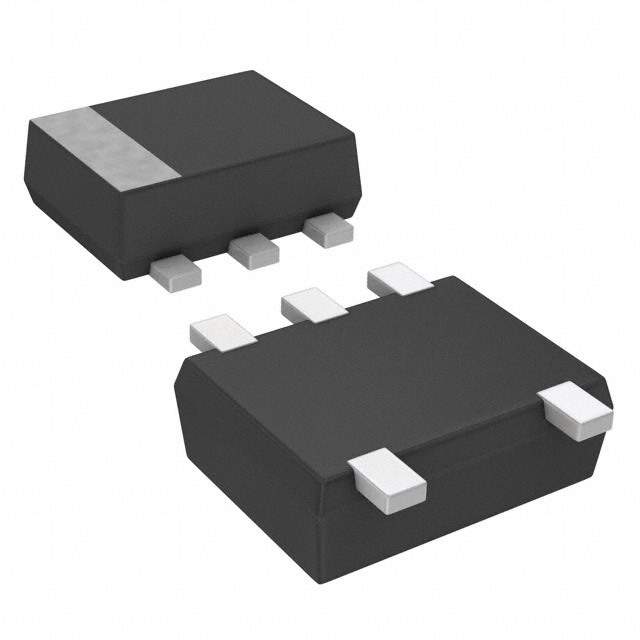

UP0338300L Real Image
Same model may have multiple batches, images only for reference.

UP0338300L

Part No UP0338300L
Manufacturer Panasonic
Catalog Transistors (BJT) - Arrays, Pre - Biased
Description TRANS PREBIAS NPN/PNP SSMINI5
Datasheet
UP0338300L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity 1 NPN, 1 PNP - Pre-Biased (Dual)
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 47k, 4.7k
Resistor - Emitter Base (R2) (Ohms) 47k, 10k
Typical Gain (hFE) (Min) 80 @ 5mA, 10V / 30 @ 5mA, 10V
Max Vce (sat) 250mV @ 300μA, 10mA
Collector Cut-off Current(Max) 500nA
Frequency - Transition 150MHz, 80MHz
Maximum Power Dissipation 125mW
Mounting SMD (SMT)
Case / Package SSMini5-F2
Win Source Part Number 036096-UP0338300L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UP0338300L CAD Model

Description

The Panasonic Electronic Components 036096-UP0338300L is an obsolete (EOL) dual pre-biased NPN and PNP transistor in SSMini5-F2 package.

  • Maximum Collector-Emitter Breakdown Voltage: 50V
  • Maximum Current Collector: 100mA
  • Typical Gain: 80 @ 5mA and 10V
  • Maximum Power Dissipation: 125mW
  • Transistor Type: discrete semiconductor products
  • Frequency Transition: 150MHz and 80MHz
  • Collector Cut-Off Current: 500nA
  • Maximum Vce (sat): 250mV @ 300μA and 10mA
  • Resistor Values for R1 and R2: 47k and 4.7k and 47k and 10k, respectively
  • Packaging: reel - TR
  • Mounting Technology: SMD (SMT) technology
  • Supply and Demand Status: balanced
