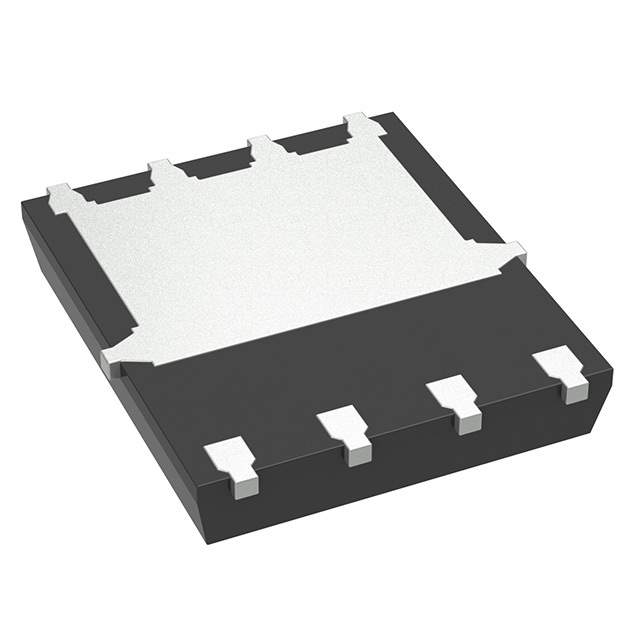

PJQ5472A_R2_00001 Real Image
Same model may have multiple batches, images only for reference.

PJQ5472A_R2_00001

Part No PJQ5472A_R2_00001
Manufacturer Panjit
Catalog Transistors - FETs, MOSFETs - RF
Description 100V N-CHANNEL ENHANCEMENT MODE / N-Channel 100 V 2.9A (Ta), 13A (Tc) 2W (Ta), 41W (Tc) Surface Mount DFN5060-8
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Panjit International Inc.
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 2.9A (Ta), 13A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 115mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 20 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1413 pF @ 25 V
Power Dissipation (Max) 2W (Ta), 41W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package DFN5060-8
Package / Case 8-PowerVDFN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Names 3757-PJQ5472A_R2_00001TR,3757-PJQ5472A_R2_00001CT,3757-PJQ5472A_R2_00001DKR
Standard Package 3,000
Win Source Part Number 1085306-PJQ5472A_R2_00001
Ultra Librarian 3D Model Ultra Librarian PJQ5472A_R2_00001 CAD Model

Description

The PJQ5472A_R2_00001 is an N-Channel MOSFET transistor from Panjit International Inc.

  • Applications: Power Management, Motor Control, and Lighting
  • Drain to Source Voltage: 100V
  • Continuous Drain Current: 2.9A @ 25°C
  • Maximum Rds On: 115mOhm @ 6.5A and 10V
  • Gate Voltage: ±20V
  • Package/Case: 8-PowerVDFN
