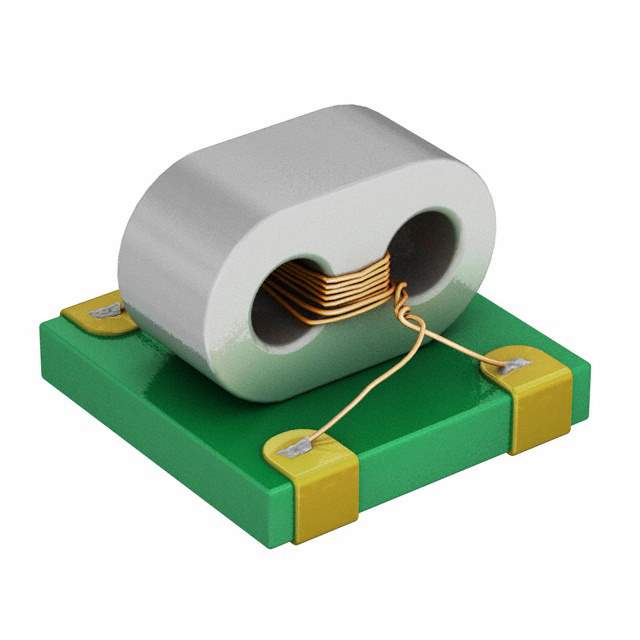

CX2047LANLT Real Image
Same model may have multiple batches, images only for reference.

CX2047LANLT

Part No CX2047LANLT
Manufacturer Pulse
Catalog Balun
Description BALUN 500KHZ-300MHZ 1:4 6SMD MOD / RF Balun 500KHz ~ 300MHz 1:4 6-SMD Module, 5 Leads
Datasheet
CX2047LANLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>Balun
Manufacturer Pulse Electronics
Packaging Reel - TR
Frequency Range 500KHz ~ 300MHz
Insertion Loss (Max) 4.0dB
Return Loss (Min) 14dB
Case / Package 6-SMD Module, 5 Leads
Mounting Surface Mount
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 553-2770-6,-CX2047LANLT,553-2770-1,553-2770-2
Standard Package 2,000
Win Source Part Number 1330609-CX2047LANLT
Ultra Librarian 3D Model Ultra Librarian CX2047LANLT CAD Model

Description

The Pulse Electronics CX2047LANLT is a balun with a surface mount mounting.

  • Frequency Range: 500KHz ~ 300MHz
  • Insertion Loss (Max): 4.0dB
  • Case/Package: 6-SMD Module, 5 Leads
  • RoHS Compliant: Yes
