Same model may have multiple batches, images only for reference.

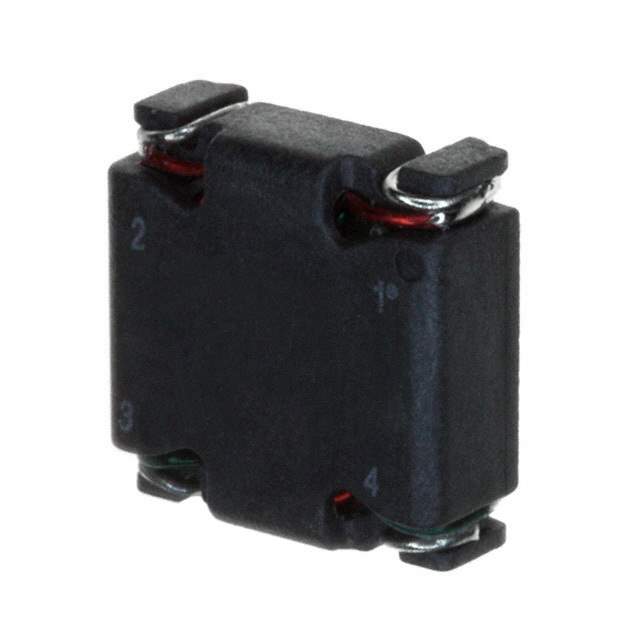

P0176NLT Real Image
Same model may have multiple batches, images only for reference.

P0176NLT

Part No P0176NLT
Manufacturer Pulse
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 5.5UH SMD
Datasheet
P0176NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 17 Weeks
Features Unshielded 2 Coil Inductor Array 22.45 µH Inductance - Connected in Series 5.5 µH Inductance - Connected in Parallel 19mOhm Max DC Resistance (DCR) - Parallel 5.2 A Nonstandard
Manufacturer Pulse
Series Polecat
Package Reel - TR
Operating Temperature Range -40°C ~ 130°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 553-2069-2, 553-2069-6, P0176NLT-ND, 553-2069-1
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929741-P0176NLT
Ultra Librarian 3D Model Ultra Librarian P0176NLT CAD Model

Description

The Pulse P0176NLT Polecat series unshielded 2 coil inductor array is a high-quality electronic component.

  • Series Inductance: 22.45 µH
  • Parallel Inductance: 5.5 µH
  • Maximum DC Resistance: 19mOhm
  • Current Rating: 5.2 A
  • Operating Temperature: -40°C to 130°C
  • Series: Polecat
  • Package: Nonstandard Surface Mount
  • Packaging: Reel
  • Quantity: 500
  • Popularity: High
  • Supply and Demand: Balance
  • Estimated Production Lead Time: 17 weeks
  • HTSUS Code: 8504.50.4000
  • ECCN: EAR99
