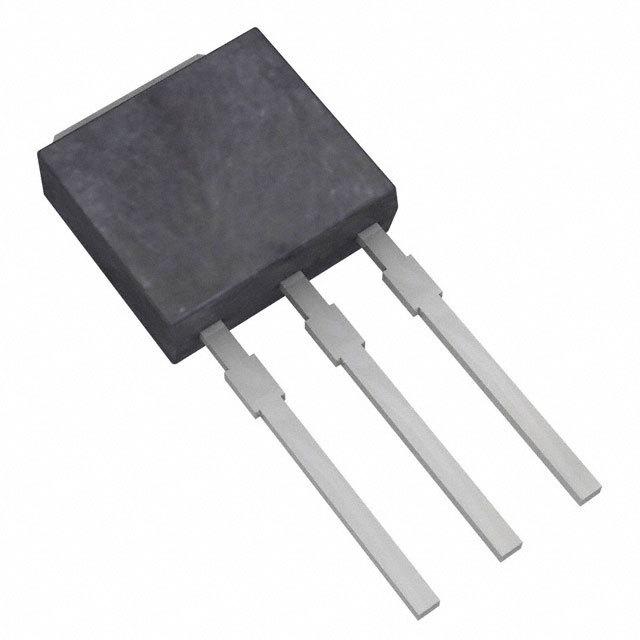

2SK3813-AZ Renesas Electronics America
Same model may have multiple batches, images only for reference.

2SK3813-AZ

Part No 2SK3813-AZ
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V MP-3/TO-251
Datasheet
2SK3813-AZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Bulk
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 60A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Max Gate Charge 96nC @ 10V
Max Input Capacitance 5500pF @ 10V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 1W (Ta), 84W (Tc)
Maximum Rds On at Id,Vgs 5.3 mOhm @ 30A, 10V
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-251 (MP-3)
Dimension TO-251-3 Short Leads, IPak, TO-251AA
Win Source Part Number 1004748-2SK3813-AZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SK3813-AZ CAD Model

Description

The Renesas 2SK3813-AZ is a high-speed switching MOSFET designed for use in power supplies, motor drives, and other applications that require high efficiency and low power loss.

  • Maximum Drain-Source Voltage: 40V
  • Maximum Continuous Drain Current: 60A
  • On-Resistance: 5.3 mOhm
  • Package: TO-251
  • RoHS Compliant: Yes
