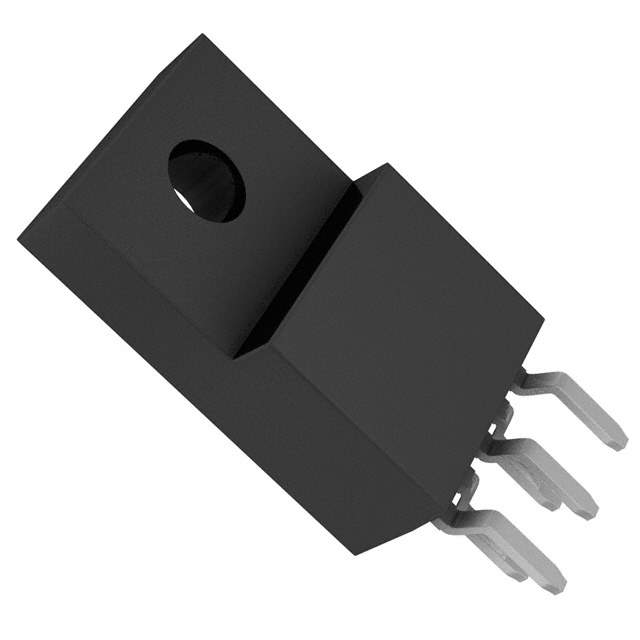

BA00DD0WCP-V5E2

Part No BA00DD0WCP-V5E2
Manufacturer Rohm Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 2A TO220FP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 25V
Nominal Output Voltage (Min/Fixed) 1.27V
Maximum Output Voltage 24.3V
Dropout Voltage-Max 0.7V @ 2A
Output Current 2A
Operating Supply Current 2.5mA to 5mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage Adjustable
Voltage - Dropout (Typical) 0.45V @ 2A
Mounting Through Hole
Case / Package TO-220FP
Win Source Part Number 000192-BA00DD0WCP-V5E2
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BA00DD0WCP-V5E2 CAD Model

Description

BA00DD0WCP-V5E2

Ideal for heavy-duty applications, the BA00DD0WCP-V5E2 is engineered for superior power regulation and efficiency. This component offers robust protection features, ensuring longevity and reliability in demanding environments.

  • Applications/Projects:
    • Telecommunications Equipment
    • Data Centers
    • Heavy Machinery Automation
    • Renewable Energy Systems
  • Features and Benefits:
    • Superior Power Regulation: Handles high power loads with ease.
    • Robust Protection Mechanisms: Guards against overload and thermal issues.
    • Long Lifecycle: Built to withstand rigorous usage over extended periods.
