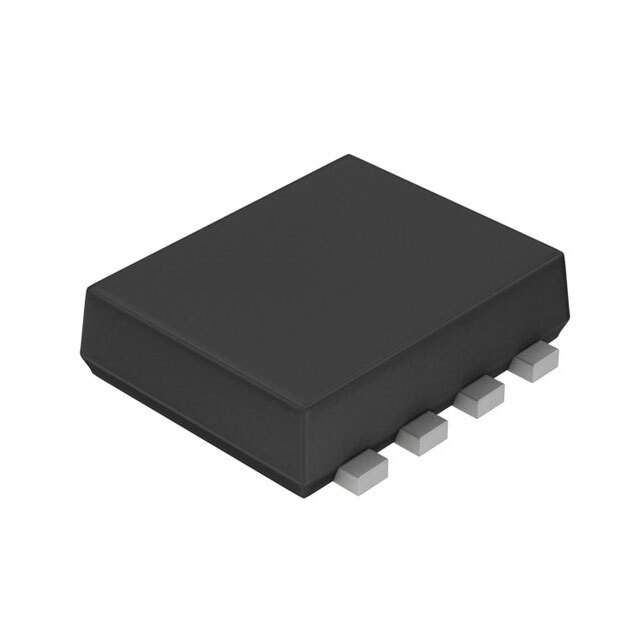

QS8J12 Real Image
Same model may have multiple batches, images only for reference.

QS8J12

Part No QS8J12
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2P-CH 12V 4.5A TSMT8
Datasheet
QS8J12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate, 1.5V Drive
Drain-Source Breakdown Voltage 12V
Continuous Drain Current at 25°C 4.5A
Maximum Rds On at Id,Vgs 29 mOhm @ 4.5A, 4.5V
Gate-Source Threshold Voltage 1V @ 1mA
Max Gate Charge 40nC @ 4.5V
Max Input Capacitance 4200pF @ 6V
Maximum Power Dissipation 550mW
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package TSMT8
Win Source Part Number 042275-QS8J12
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian QS8J12 CAD Model

Description

The manufacturer of this component is Rohm Semiconductor.

  • Supply and Demand Status: balanced
  • Design: designed for specific applications that require its unique specifications
  • Product Type: Discrete Semiconductor Product
  • FET Type: 2 P-Channel (Dual)
  • FET Feature: Logic Level Gate, 1.5V Drive
  • Operating Temperature: 150°C (TJ)
  • Case/Package: TSMT8
  • Maximum Power Dissipation: 550mW
  • Drain-Source Breakdown Voltage: 12V
  • Continuous Drain Current: 4.5A @ 25°C
  • Gate-Source Threshold Voltage: 1V @ 1mA
  • Max Gate Charge: 40nC @ 4.5V
  • Max Input Capacitance: 4200pF @ 6V
  • Maximum Rds On: 29 mOhm @ 4.5A, 4.5V
