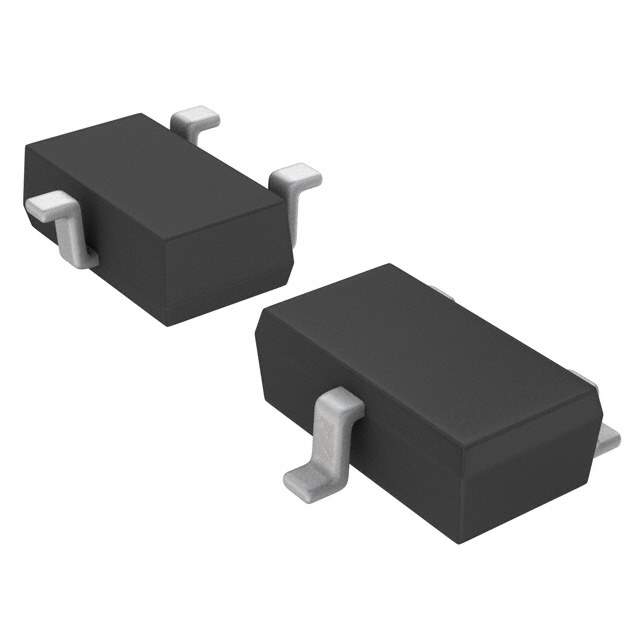

The 958826-RSR025P03HZGTL is a P-Channel MOSFET transistor from Rohm Semiconductor.

• Type: P-Channel MOSFET Transistor
• Series: Automotive AEC-Q101
• Applications: Power Management, Load Switching, and Battery Protection in Automotive Systems
• Drain-to-Source Voltage: 30V
• Continuous Drain Current: 2.5A @ 25°C
• Rds On: 98mOhm @ 2.5A and 10V
• Maximum Gate Charge: 5.4nC @ 5V
• Input Capacitance: 460pF @ 10Vds
• Package: SC-96
• Supplier Device Package: TSMT3
• Maximum Power Dissipation: 700mW @ Ta
• Operating Temperature Range: -55°C to 150°C
• Drive Voltage: 4V to 10V for maximum Rds On and minimum Rds On
