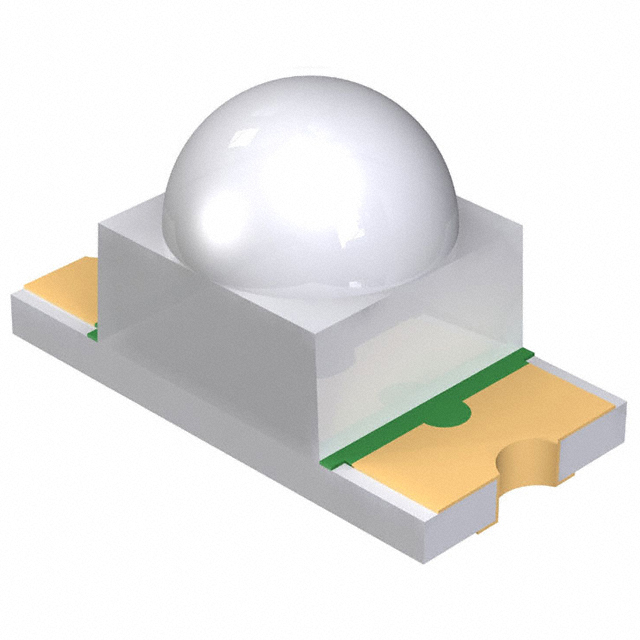

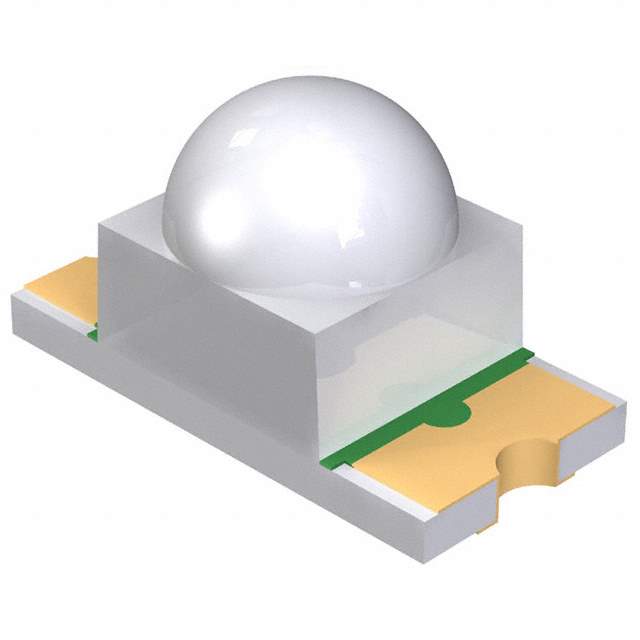

SML-S13RTT86 Rohm Semiconductor SML-S13RTT86 Real Image SML-S13RTT86 real image
Same model may have multiple batches, images only for reference.

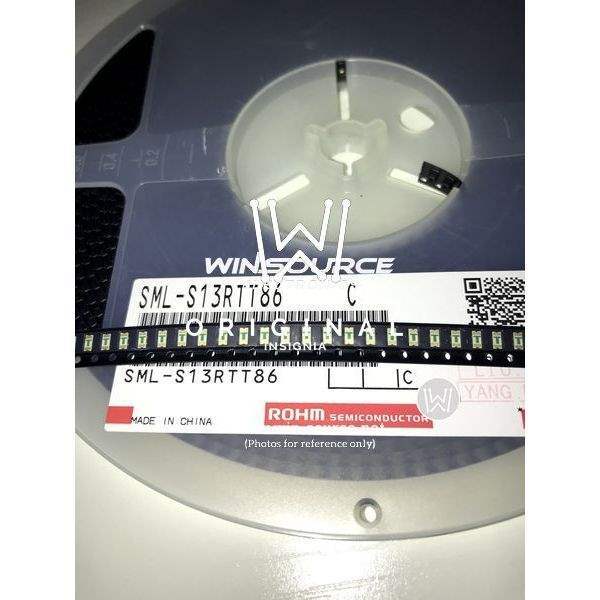

SML-S13RTT86 Rohm Semiconductor SML-S13RTT86 Real Image SML-S13RTT86 real image
SML-S13RTT86 Rohm Semiconductor SML-S13RTT86 Real Image SML-S13RTT86 real image
Same model may have multiple batches, images only for reference.

SML-S13RTT86

Part No SML-S13RTT86
Manufacturer Rohm Semiconductor
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 850NM 30MA 1206 / Infrared Emitter 850nm 2.5mW/sr Circular Top Mount 2-Pin Case 1206(3216Metric) T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Type Infrared (IR)
Continuous forward current- Max 30mA
Radiant Intensity (Ie) Min @ If 1.5mW/sr @ 20mA
Wavelength 850nm
Forward Voltage 1.4V
Orientation Top View
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Dimension 1206 (3216 Metric)
Win Source Part Number 029418-SML-S13RTT86
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SML-S13RT
Introduction Date January 01, 2000
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian SML-S13RTT86 CAD Model

Description

The SML-S13RTT86 is an infrared LED manufactured by Rohm Semiconductor.

  • Mounting: top-view surface-mount device
  • Package: 1206
  • Wavelength: 850nm
  • Radiant Intensity (min): 1.5mW/sr @ 20mA
  • Compliance: halogen-free standards
  • EOL Date (est): 2028
