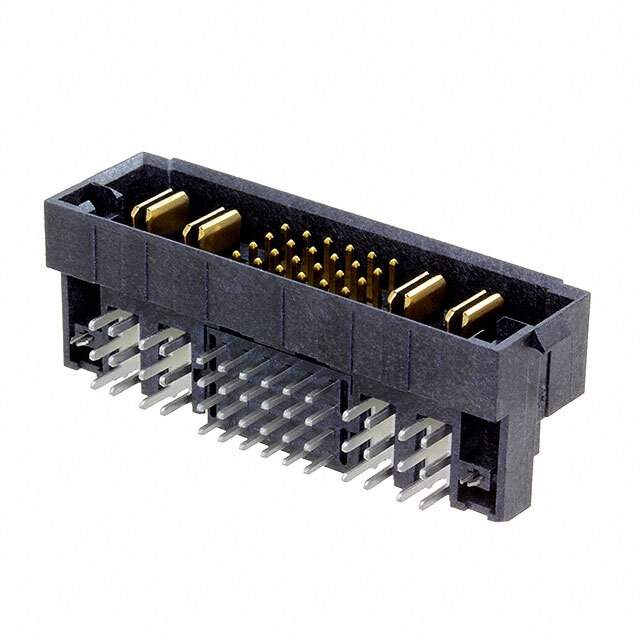

MPTC-02-24-02-01-01-L-RA-LC Real Image
Same model may have multiple batches, images only for reference.

MPTC-02-24-02-01-01-L-RA-LC

Part No MPTC-02-24-02-01-01-L-RA-LC
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 28POS / Connector Header Through Hole, Right Angle 28 (24 + 4 Power) position
Datasheet
MPTC-02-24-02-01-01-L-RA-LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series PowerStrip™ 30 MPTC
Package Tray
Connector Type Header
Contact Type Male Blade; Male Pin
Number of Positions 28 (24 + 4 Power)
Number of Rows 4
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.107" (2.71mm)
Insulation Height 0.490" (12.44mm)
Contact Shape Rectangular, Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Copper Alloy, Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Lock
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number MPTC-02
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names MPTC-02-24-02-01-01-L-RA-LC-ND,SAM15507
Standard Package 40
Win Source Part Number 1201280-MPTC-02-24-02-01-01-L-RA-LC
Ultra Librarian 3D Model Ultra Librarian MPTC-02-24-02-01-01-L-RA-LC CAD Model

Description

The PowerStrip™ 30 MPTC series from Samtec Inc. is a 4-row, 28-position header connector featuring male blade and male pin contact types.

  • Contact Type: male blade and male pin
  • Fastening Type: locking ramp
  • Shrouded: 4-wall design
  • Contact Material: copper alloy and phosphor bronze
  • Contact Finish Mating: gold
  • Contact Finish Post: tin
  • Insulation Material: liquid crystal polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 125°C
  • Application: board-to-board
  • Positions Loaded: all
  • Mating Heights: not specified
  • Voltage Rating: unspecified
  • Package Quantity: 40 pieces
  • Delivery: tray
