Same model may have multiple batches, images only for reference.

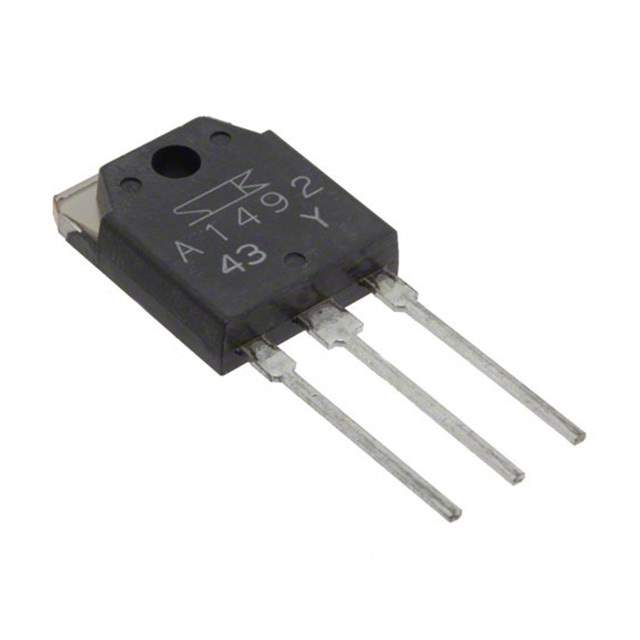

2SA1492 Real Image
Same model may have multiple batches, images only for reference.

2SA1492

Part No 2SA1492
Manufacturer Sanken
Catalog Transistors (BJT) - Single
Description TRANS PNP 180V 15A TO-3P
Datasheet
2SA1492 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Status Active
Transistor Polarity PNP
Maximum Current Collector 15A
VCEO Maximum Collector-Emitter Breakdown Voltage 180V
Max Vce (sat) 2V @ 500mA, 5A
Collector Cut-off Current(Max) 100μA (ICBO)
Typical Gain (hFE) (Min) 50 @ 3A, 4V
Maximum Power Dissipation 130W
Frequency - Transition 20MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-3P
Win Source Part Number 1004167-2SA1492
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SA1492 CAD Model

Description

The 2SA1492 is a PNP transistor from Sanken, designed for use in discrete semiconductor products.

  • Maximum Collector-Emitter Breakdown Voltage: 180V
  • Maximum Current Collector: 15A
  • Maximum Power Dissipation: 130W
  • Frequency Transition: 20MHz
  • Typical Gain: 50 @ 3A and 4V
  • Collector Cut-Off Current: 100μA
  • Maximum Vce (sat): 2V @ 500mA and 5A
  • Package: TO-3P
  • Temperature Range: 150°C (TJ)
