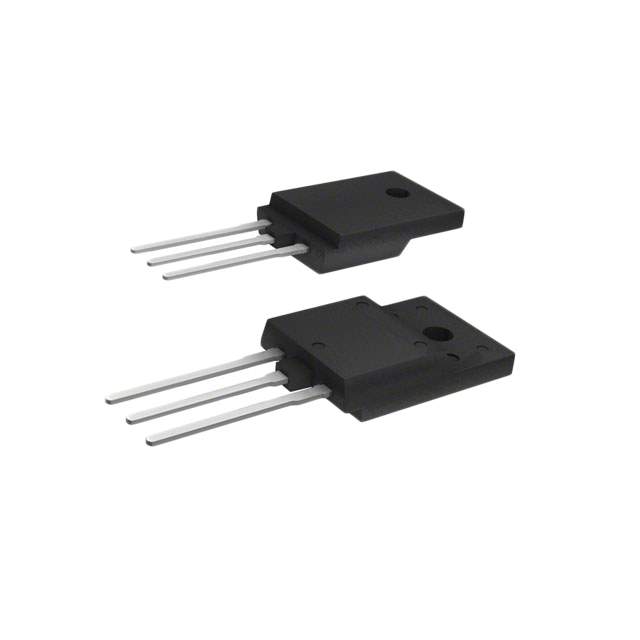

2SA1694 Real Image
Same model may have multiple batches, images only for reference.

2SA1694

Part No 2SA1694
Manufacturer Sanken
Catalog Transistors (BJT) - Single
Description TRANS PNP 120V 8A TO3P
Datasheet
2SA1694 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Status Active
Transistor Polarity PNP
Maximum Current Collector 8A
VCEO Maximum Collector-Emitter Breakdown Voltage 120V
Max Vce (sat) 1.5V @ 300mA, 3A
Collector Cut-off Current(Max) 10μA (ICBO)
Typical Gain (hFE) (Min) 50 @ 3A, 4V
Maximum Power Dissipation 80W
Frequency - Transition 20MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-3P
Win Source Part Number 1004179-2SA1694
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SA1694 CAD Model

Description

The Sanken 2SA1694 is a PNP transistor.

  • Maximum Current Collector: 8A
  • Maximum Collector-Emitter Breakdown Voltage: 120V
  • Supply and Demand Status: Balanced
