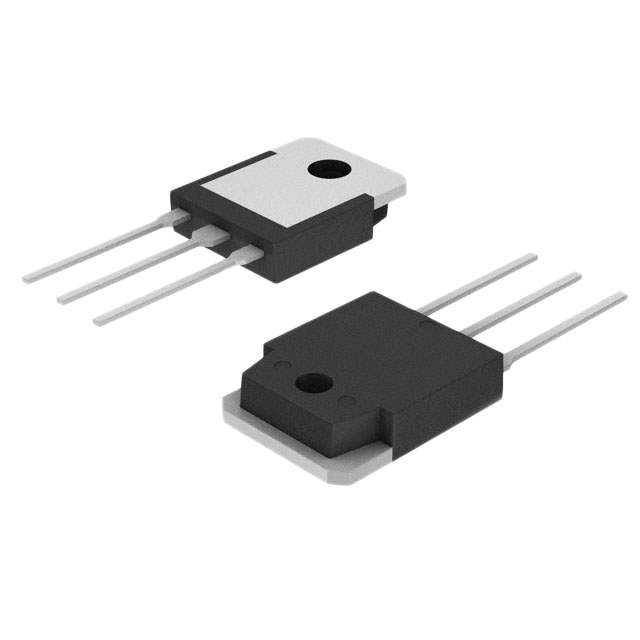

Overview of 2SC4706

The 2SC4706 is a high-performance NPN silicon epitaxial transistor characterized by its high breakdown voltage and fast switching capabilities, making it an ideal component in numerous high-frequency and high-voltage applications. Its robust construction and operational efficiency are pivotal for modern electronic designs.

Applications

• Switching Power Supplies
• High-Frequency Amplifiers
• Inverter Circuits
• Pulse Width Modulated (PWM) Amplifiers

Features and Benefits

• High Breakdown Voltage: Ensures stability and reliability under high-voltage conditions.
• Fast Switching Speeds: Enables efficient performance in high-frequency applications.
• Rugged Construction: Designed to withstand harsh operating environments.
• Low Collector to Emitter Saturation Voltage: Promotes energy efficiency by reducing power loss.

Additional Details

The 2SC4706 is manufactured using advanced epitaxial planar technology, which guarantees improved performance metrics across a variety of operational parameters. With its capacity to facilitate efficient thermal management, this transistor is suitable for use in circuits requiring durability and high efficiency. Furthermore, the 2SC4706 serves as an excellent choice for feedback and regulation circuits owing to its linear amplification capabilities and stable operation across wide frequency ranges.
