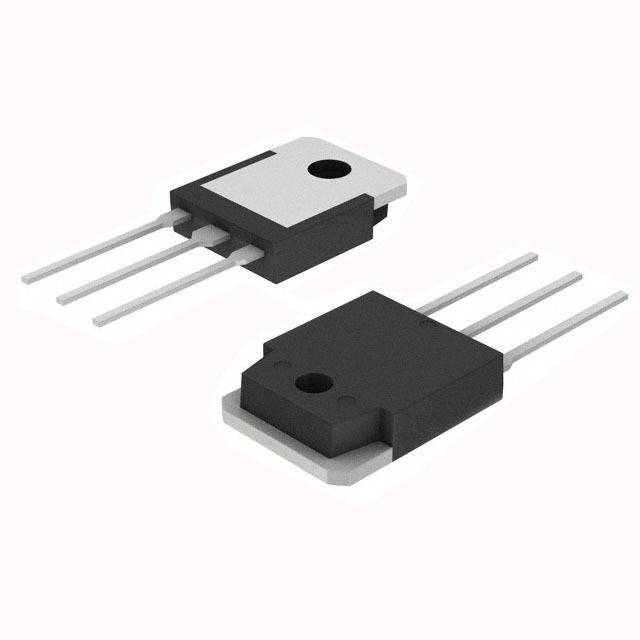

Same model may have multiple batches, images only for reference.
2SD2390 Sanken
Same model may have multiple batches, images only for reference.

2SD2390

Part No 2SD2390
Manufacturer Sanken
Catalog Transistors (BJT) - Single
Description TRANS NPN DARL 150V 10A TO-3P
Datasheet
2SD2390 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Status Active
Transistor Polarity NPN - Darlington
Maximum Current Collector 10A
VCEO Maximum Collector-Emitter Breakdown Voltage 150V
Max Vce (sat) 2.5V @ 7mA, 7A
Collector Cut-off Current(Max) 100μA (ICBO)
Typical Gain (hFE) (Min) 5000 @ 7A, 4V
Maximum Power Dissipation 100W
Frequency - Transition 55MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-3P
Win Source Part Number 1004602-2SD2390
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Audio, Industrial
Ultra Librarian 3D Model Ultra Librarian 2SD2390 CAD Model

Description

The Sanken 2SD2390 is an active electronic component manufactured by Sanken.

  • Supply and Demand: Balanced
  • Frequency Transition: 55MHz
  • Maximum Current Collector: 10A
  • Transistor Polarity: NPN-Darlington
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 150V
  • Category: Discrete Semiconductor Product
  • Power Dissipation: 100W
