Same model may have multiple batches, images only for reference.

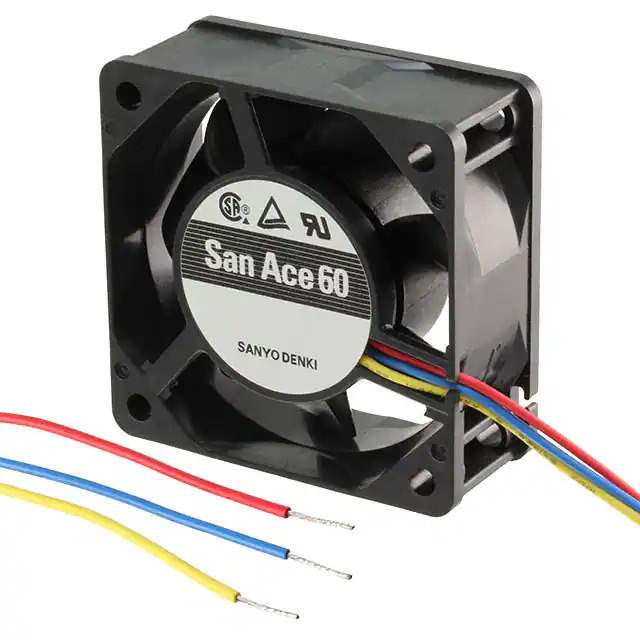

109R0612S401 Real Image
Same model may have multiple batches, images only for reference.

109R0612S401

Part No 109R0612S401
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 60X25MM 12VDC WIRE
Datasheet
109R0612S401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 60
Package Box
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 60mm L x 60mm H
Width 25.00mm
Air Flow 23.0 CFM (0.644m³/min)
Static Pressure 0.228 in H2O (56.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 33.0dB(A)
Power (Watts) 2.04 W
RPM 4600 RPM
Termination 3 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.199 lb (90.26 g)
Current Rating (Amps) 0.170A
Voltage Range 6 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 60000 Hrs @ 60°C
Base Product Number 109R0612
Standard Package 80 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 853681-109R0612S401
Ultra Librarian 3D Model Ultra Librarian 109R0612S401 CAD Model

Description

The 853681-109R0612S401 is a DC brushless fan from the San Ace 60 series by Sanyo Denki America Inc.

  • Series: San Ace 60
  • Application: Cooling and Thermal Management
  • Shape: Square
  • Dimensions: 60mm x 60mm x 25.00mm
  • Rated Voltage: 12VDC
  • Power Consumption: 2.04W
  • Airflow: 23.0 CFM
  • Static Pressure: 0.228 in H2O
  • Protection: Locked Rotor Protection
  • Sensor: Speed Sensor (Tach)
  • Lifetime: 60000 hours @ 60°C
  • Noise Level: 33.0dB(A)
  • Bearing: Ball Bearing
  • Product Status: Active
