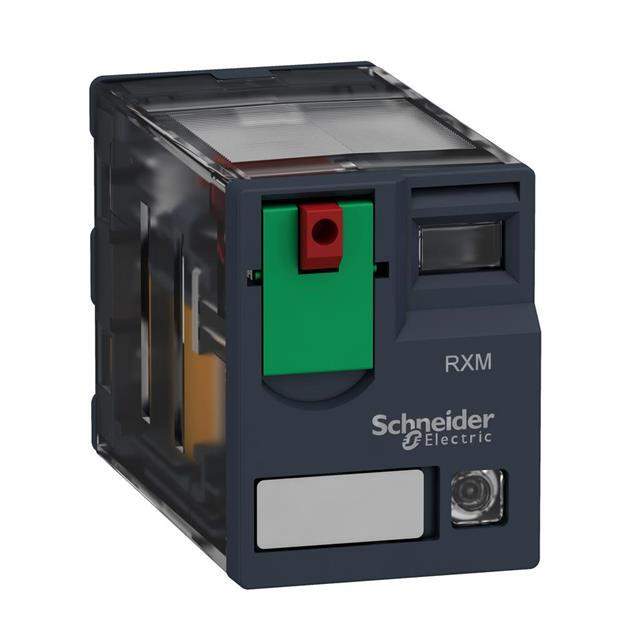

RXM4AB2F7 Real Image
Same model may have multiple batches, images only for reference.

RXM4AB2F7

Part No RXM4AB2F7
Manufacturer Schneider Electric
Catalog Power Relays, Over 2 Amps
Description ZELIO, RXM, MINIATURE PLUGIN REL / General Purpose Relay 4PDT (4 Form C) 120VAC Coil Socketable
Datasheet
RXM4AB2F7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Schneider Electric
Series Harmony
Package Box
Mounting Type Socketable
Coil Voltage 120VAC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 28VDC - Max
Coil Current 27.1 mA
Coil Type Non Latching
Features Lighted Indicator, Test Button
Termination Style Plug In
Must Operate Voltage 96 VAC
Must Release Voltage 18 VAC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 4.43 kOhms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.49.0050
Other Names 4008-RXM4AB2F7
Standard Package 1
Win Source Part Number 1089465-RXM4AB2F7
Ultra Librarian 3D Model Ultra Librarian RXM4AB2F7 CAD Model

Description

The Schneider Electric Harmony 1089465-RXM4AB2F7 is a power relay that has a contact form of 4PDT (4 Form C). 1089465-RXM4AB2F7 manufactured by Schneider Electric.

  • Contact Form: 4PDT (4 Form C)
  • Contact Rating (Current): 5A
  • Switching Voltage: 250VAC, 28VDC - Max
  • Coil Voltage: 120VAC
  • Coil Resistance: 4.43 kOhms
  • Coil Type: General-Purpose Non-Latching
  • Termination Style: Socketable
  • Operating Temperature: -40°C ~ 55°C
