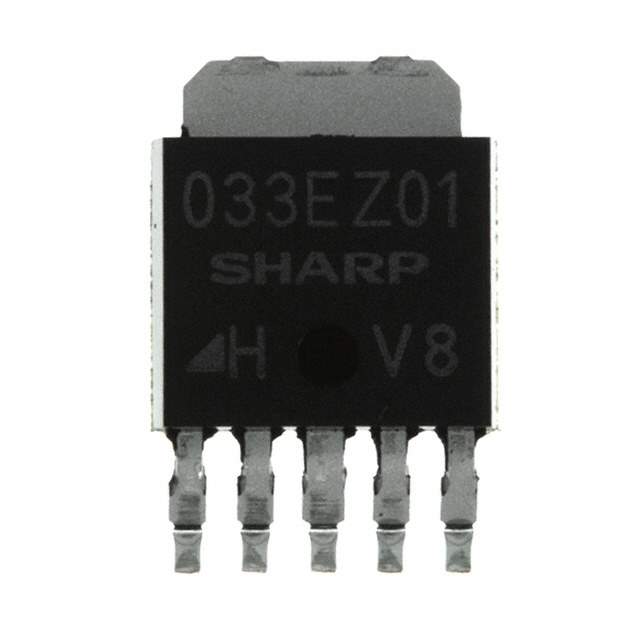

The PQ033EZ01ZP is a low-dropout (LDO) voltage regulator from Sharp Microelectronics. It is designed to provide a stable and regulated 3.3V output voltage from a higher input voltage, with low quiescent current and excellent transient response. This regulator is ideal for a wide range of applications requiring efficient and reliable voltage regulation.

Applications

• Microcontroller power supplies
• Portable devices
• Battery-powered equipment
• Consumer electronics
• Industrial control systems

Features

• Low Dropout Voltage: Maintains regulation with a very small difference between input and output voltage.
• Fixed Output Voltage: Provides a stable and precise 3.3V output.
• Low Quiescent Current: Minimizes power consumption when the output is lightly loaded or not loaded at all.
• Overcurrent Protection: Protects the regulator and the load from excessive current.
• Overtemperature Protection: Shuts down the regulator in case of overheating.
• Short-Circuit Protection: Protects the regulator from damage due to short circuits.
• Small Package: Available in a compact package for space-constrained applications.
• High Accuracy: Provides a precise and stable output voltage.

Benefits

• Energy Efficiency: Low dropout voltage and low quiescent current improve energy efficiency.
• Stable Output Voltage: Provides a stable and precise 3.3V output, ensuring reliable operation of the load.
• Protection Features: Overcurrent, overtemperature, and short-circuit protection enhance reliability and prevent damage.
• Compact Design: Small package allows for use in space-constrained applications.
• Easy to Use: Simple design requires minimal external components.

Additional Details

The PQ033EZ01ZP typically requires only a few external capacitors for stable operation. It is available in a SOT-89 package. The regulator's operating temperature range is typically from -30°C to +85°C. This LDO regulator is a cost-effective and reliable solution for providing a regulated 3.3V supply in a variety of applications. It has a low quiescent current which makes it perfect for battery powered applications.
