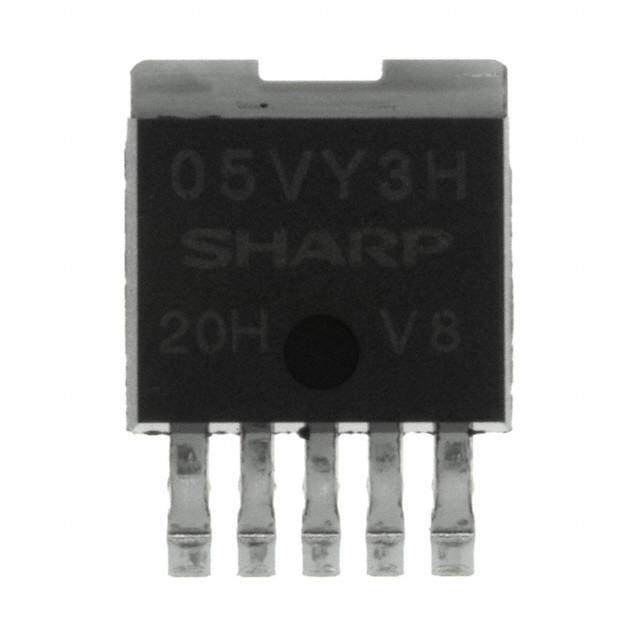

Same model may have multiple batches, images only for reference.

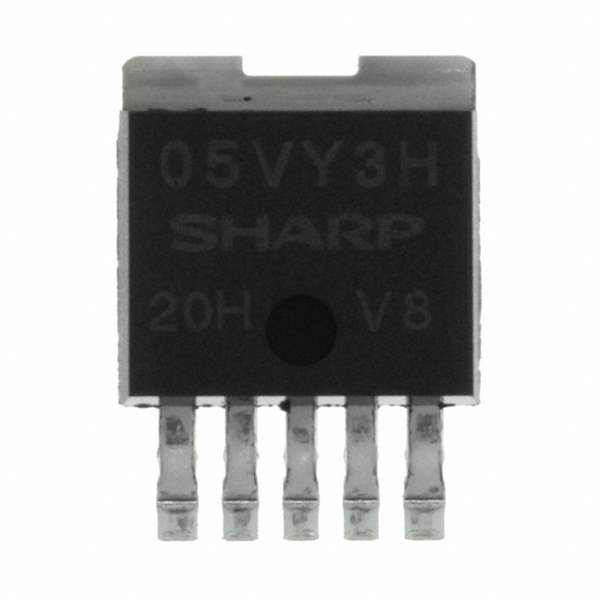

PQ05VY3H3ZPH Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PQ05VY3H3ZPH

Part No PQ05VY3H3ZPH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO ADJ 3.5A TO263
Datasheet
PQ05VY3H3ZPH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 7V
Nominal Output Voltage (Min/Fixed) 1.5V
Maximum Output Voltage 5V
Dropout Voltage-Max 0.5V @ 3.5A
Output Current 3.5A
Operating Supply Current 10mA
PSRR 70dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Adjustable
Output Voltage 1.5 V to 5 V
Mounting SMD (SMT)
Case / Package TO-263
Win Source Part Number 119838-PQ05VY3H3ZPH
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ05VY3H3ZPH CAD Model

Description

The Sharp Microelectronics PQ05VY3H3ZPH is an obsolete (EOL) device used in different applications.

  • Design Goal: Provide efficient and reliable performance
  • Compatibility: Compatible with different devices
  • Protection Features: Over current and over-temperature protection
  • Benefit: Reliable and efficient component that delivers the best results.
