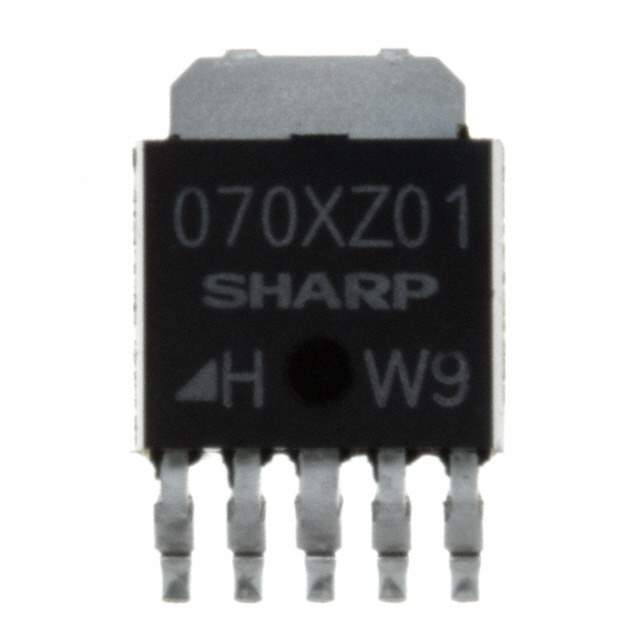

PQ070XZ01ZZH Real Image
Same model may have multiple batches, images only for reference.

PQ070XZ01ZZH

Part No PQ070XZ01ZZH
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description Low Voltage Operation Low Power-loss Voltage Regulator
Datasheet
PQ070XZ01ZZH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Sharp Microelectronics
Packaging Tube
Part Status Obsolete(EOL)
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage Input MAX 10V
Output Voltage 1.5V
Output Voltage MAX 7V
Voltage Dropout (Maximum) 0.5V @ 500mA
Output Current 1A
Operating Supply Current 2mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package TO-252-6, DPak (5 Leads + Tab)
Manufacturer Package SC-63
Win Source Part Number 1239268-PQ070XZ01ZZH
Manufacturer Homepage sharp-world.com/
Popularity Medium
Supply and Demand Status Limited
Family Name PQ070XZ01Z
Introduction Date October 15, 2006
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian PQ070XZ01ZZH CAD Model

Description

The PQ70XZ01ZZH electronic component is an adjustable voltage regulator from Sharp Microelectronics that has a Win Source Part Number of 1239268.

  • Package: TO-252-6, DPak (5 Leads + Tab)
  • Mounting: SMD
  • Number of Regulators: 1
  • Output Configuration: Positive
  • Output Current: 1A
  • Output Voltage: 1.5V
  • Operating Supply Current: 2mA
  • PSRR: 60dB (120Hz)
  • Protection Features: Over current and over temperature
  • Introduction Date: October 15, 2006
  • Category: Integrated Circuits (ICs)
  • Popularity Rating: Medium
  • Status: Obsolete(EOL)
  • Estimated EOL Date: N/A
