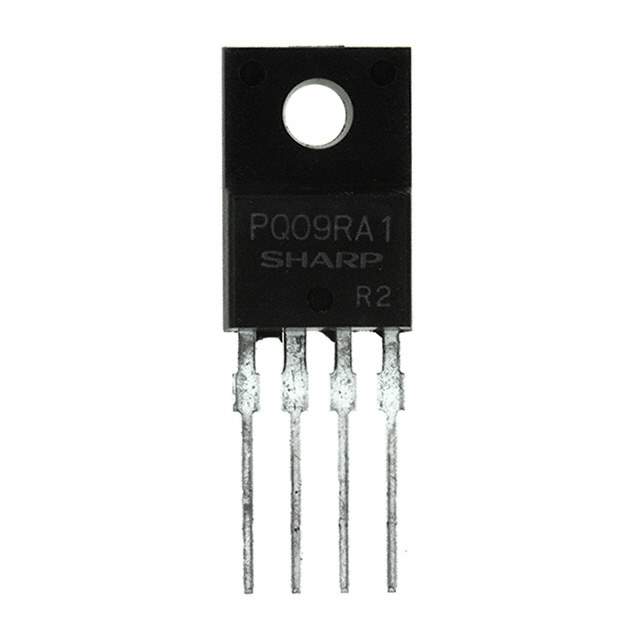

PQ09RA1 Real Image
Same model may have multiple batches, images only for reference.

PQ09RA1

Part No PQ09RA1
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 9V 1A TO220-4
Datasheet
PQ09RA1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 35V
Nominal Output Voltage (Min/Fixed) 9V
Output Current 1A
Operating Supply Current 8mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 9V
Mounting Through Hole
Case / Package TO-220-4
Win Source Part Number 061998-PQ09RA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ09RA1 CAD Model

Description

The Sharp Microelectronics PQ09RA1 is a positive fixed regulator from.

  • Output Voltage: 9V
  • Output Current: 1A
  • Maximum Input Voltage: 35V
  • Package: TO-220-4
  • PSRR: 55dB (120Hz)
  • Protection Features: Over current and over temperature
  • Operating Temperature: -20°C to 80°C
  • Popularity: Low
  • Mounting: Through-hole
