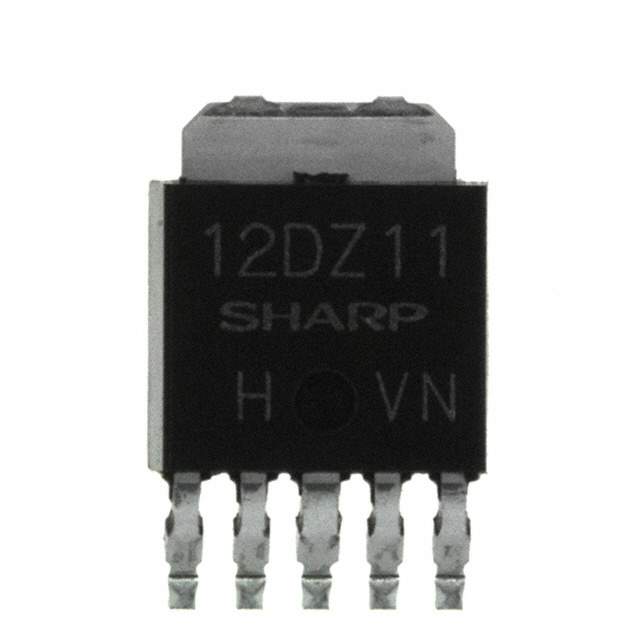

PQ12DZ1UJ00H Real Image
Same model may have multiple batches, images only for reference.

PQ12DZ1UJ00H

Part No PQ12DZ1UJ00H
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 12V 1A SC63
Datasheet
PQ12DZ1UJ00H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 24V
Nominal Output Voltage (Min/Fixed) 12V
Dropout Voltage-Max 0.5V @ 500mA
Output Current 1A
Operating Supply Current 10mA
PSRR 60dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -20°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 12V
Voltage - Dropout (Typical) 0.2V @ 500mA
Mounting SMD (SMT)
Case / Package SC-63
Win Source Part Number 105371-PQ12DZ1UJ00H
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ12DZ1UJ00H CAD Model

Description

The Sharp Microelectronics PQ12DZ1UJ00H is a positive fixed regulator with a dropout voltage of 0.2V @ 500mA.

  • Output: Single
  • Control Feature: Enable
  • Output Voltage: Fixed @ 12V
  • Output Current: 1A
  • Operating Temperature Range: -20°C to 80°C
  • Maximum Input Voltage: 24V
  • Package Type: SC-63
  • Protection Features: Over current and over temperature
  • Supply and Demand Status: Balanced
