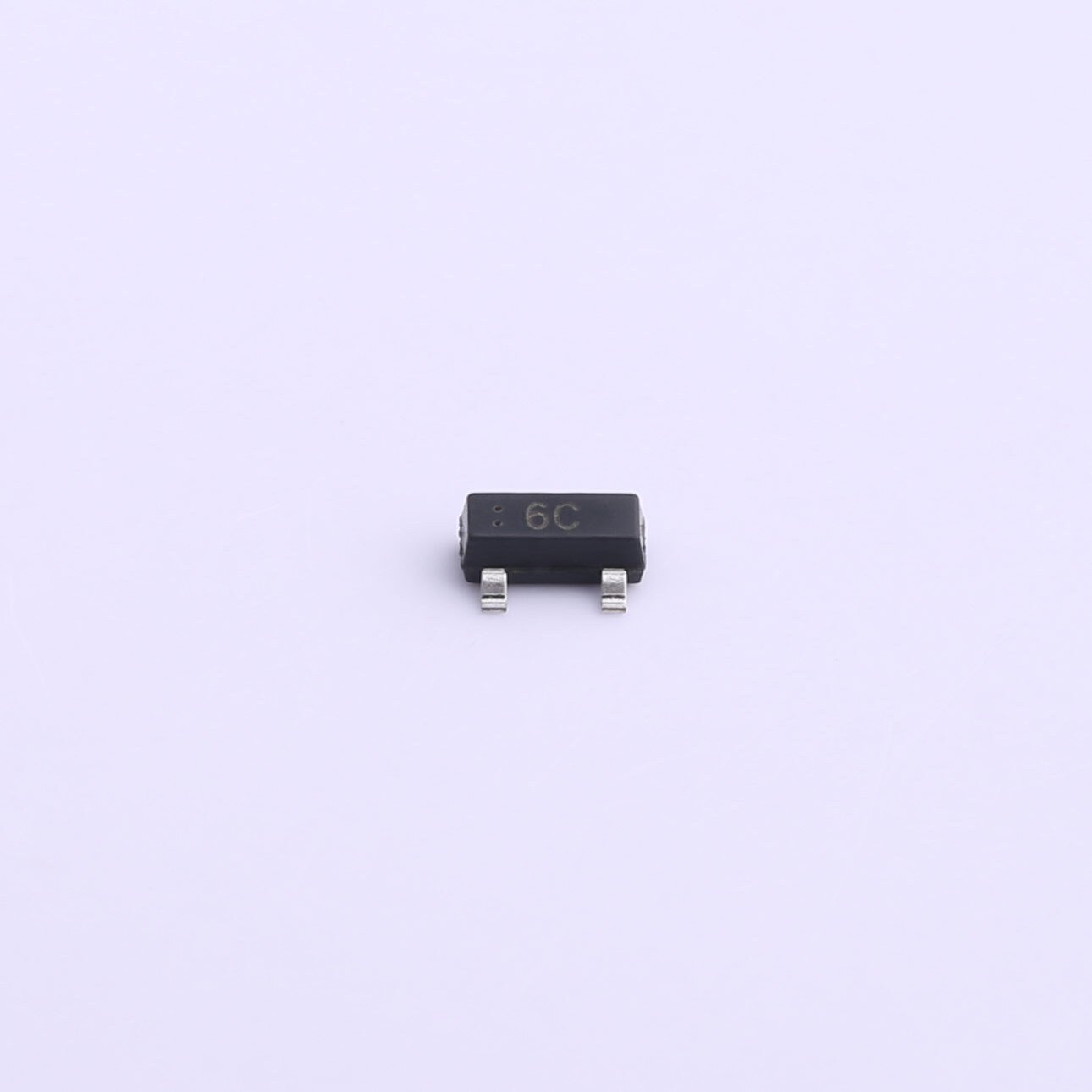

Same model may have multiple batches, images only for reference.
BC817-40 ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BC817-40

Part No BC817-40
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Transistors (BJT) - Single
Description 45V 300mW 250@100mA,1V 500mA NPN SOT-23
Datasheet
BC817-40 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329717-BC817-40
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 800mA
Voltage - Collector Emitter Breakdown (Max) 45V
Vce Saturation (Max) @ Ib, Ic 700mV @ 50mA, 500mA
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 250 @ 100mA, 1V
Power - Max 310mW
Frequency - Transition 100MHz
Operating Temperature -55°C ~ 150°C (TJ)
Grade -
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
Product Status Obsolete
Current - Collector (Ic) (Max) 500mA
Power - Max 250mW
Operating Temperature 150°C (TJ)
Supplier Device Package SOT-23-3
Package Tape & Reel (TR)
Power - Max 300mW
Supplier Device Package SOT-23
Package Cut Tape (CT)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 100mA, 1V
Ultra Librarian 3D Model Ultra Librarian BC817-40 CAD Model
