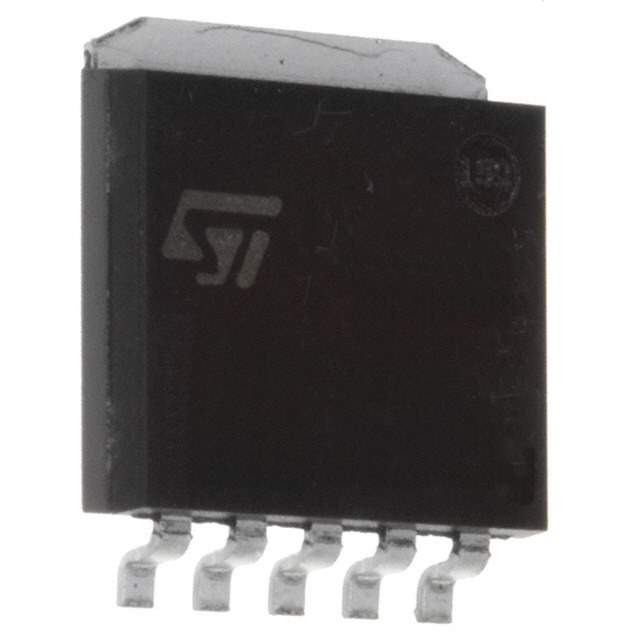

The ST2L05-3318K5 is a versatile low drop voltage regulator designed and manufactured by STMicroelectronics, a leader in the semiconductor industry. This voltage regulator is part of the ST2L05 series, which is known for its high efficiency and reliability in various electronic applications.

Key Features

• Output Voltage: The ST2L05-3318K5 provides a fixed output voltage of 3.3V, which is ideal for powering low voltage digital circuits and microcontroller-based systems.
• Low Dropout Voltage: With a low dropout voltage, this regulator can maintain a stable output even when the supply voltage is very close to the output voltage, ensuring minimal power loss and heat generation.
• Output Current: It is capable of delivering up to 500mA of output current, making it suitable for a wide range of applications, from powering small peripherals to being part of a larger power management system.
• Thermal Protection: The device includes an internal thermal shutdown mechanism that protects the circuit from damage due to excessive temperature.
• Short-Circuit Protection: The ST2L05-3318K5 also features short-circuit protection, which safeguards the regulator and the load in the event of a fault condition.

Applications

The ST2L05-3318K5 is used in various applications that require a stable and reliable power supply. These include:

• Battery-powered devices
• Portable media players
• Microcontroller power supply
• Low-power handheld devices

Package and Availability

The ST2L05-3318K5 is available in a compact package, which makes it easy to integrate into space-constrained designs. STMicroelectronics ensures availability and support for their products, providing detailed datasheets and technical support to assist with design-in and application questions.

Conclusion

As a product of STMicroelectronics, the ST2L05-3318K5 low drop voltage regulator is a testament to the company's commitment to providing high-quality, efficient, and reliable components for the electronics industry. Its combination of features makes it an excellent choice for designers looking for a robust power management solution.
