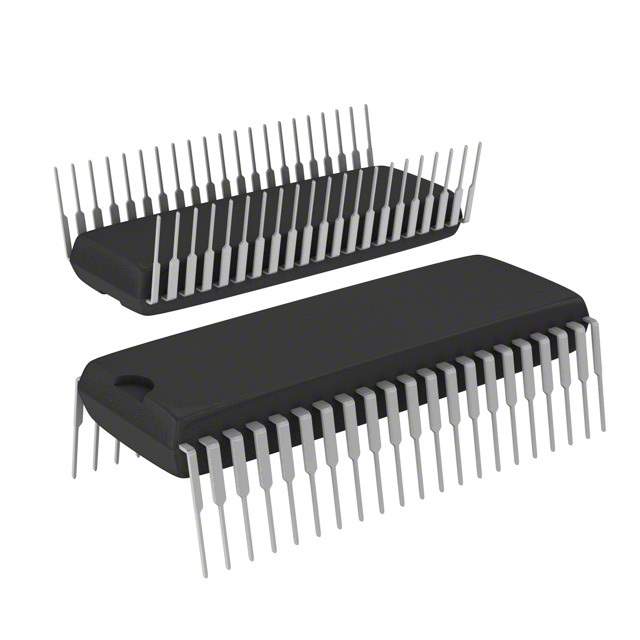

The ST72F325J6B6 is a versatile and powerful microcontroller unit (MCU) from STMicroelectronics, designed for embedded applications that require a perfect blend of low power consumption and high performance. This MCU is part of STMicroelectronics' ST7 family, which is renowned for its robust architecture, rich feature set, and ease of use, making it an ideal choice for a wide range of applications.

Key Features

• Core: The ST72F325J6B6 is built around a high-performance 8-bit ST7 CPU core, operating at a maximum frequency of 8 MHz, which provides efficient control and processing capabilities.
• Memory: It comes equipped with 32 Kbytes of Flash program memory, which is highly reliable and offers up to 10,000 write/erase cycles, and 1 Kbyte of RAM for efficient data handling.
• Peripherals: The MCU features a rich set of integrated peripherals, including an 8-channel, 10-bit ADC, two 16-bit timers, an I2C interface for serial communication, and a synchronous serial communication (SSC) interface, enhancing its versatility in handling various I/O operations.
• I/O Ports: It boasts up to 35 multifunctional bidirectional I/O ports, providing ample interface options for connecting with external devices and sensors.
• Operating Voltage: The operating voltage range of 3.0 to 5.5 V allows for flexibility in power supply design and ensures compatibility with both 3.3V and 5V systems.
• Temperature Range: The MCU operates within an industrial temperature range of -40°C to 85°C, making it suitable for harsh environments.

Applications

The ST72F325J6B6 is designed to cater to a broad spectrum of applications, particularly in the fields of automotive control systems, industrial automation, consumer electronics, and personal health devices. Its robust set of features and peripherals makes it an excellent choice for applications requiring a high level of integration and performance in a small footprint.

Support and Development Tools

STMicroelectronics provides comprehensive support for the ST72F325J6B6 with a range of development tools, including software libraries, development kits, and integrated development environments (IDEs) to streamline the development process and reduce time to market. This support ensures that engineers can fully leverage the capabilities of the MCU for their specific application needs.
