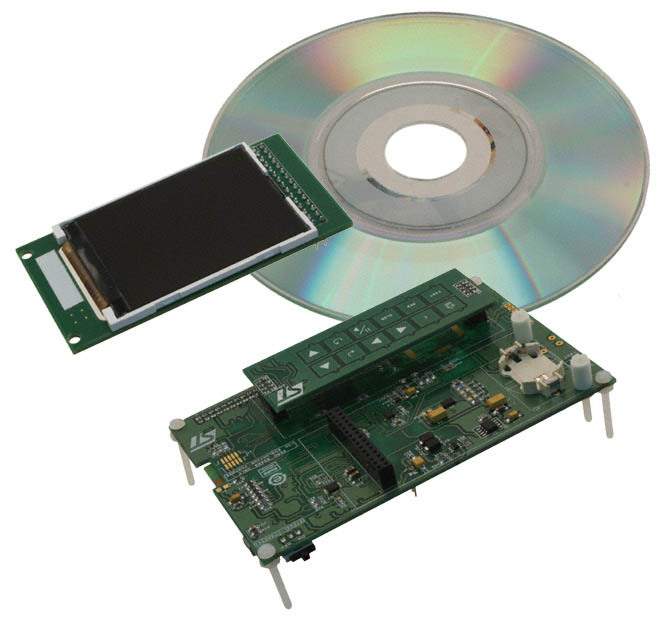

STEVAL-CCM003V1 - STMicroelectronics Evaluation Board

The STEVAL-CCM003V1 is a comprehensive evaluation board presented by STMicroelectronics, designed to demonstrate the capabilities of the SPC58EC80E5 Chorus automotive microcontroller. This evaluation platform is specifically tailored for the development of automotive applications, providing a robust testing environment for engineers to explore the features and performance of the microcontroller.

Key Features:

• SPC58EC80E5 Chorus Microcontroller: At the heart of the STEVAL-CCM003V1 is the SPC58EC80E5, a powerful automotive microcontroller with a 32-bit Power Architecture®. It is designed for body and gateway applications, offering high levels of performance, safety, and reliability.
• Connectivity: The evaluation board includes CAN, LIN, and FlexRay communication interfaces, which are essential for automotive networking. These interfaces facilitate the integration of the board into existing automotive systems for testing and development.
• Memory: Equipped with ample memory resources, the board features both Flash and RAM, allowing developers to implement complex applications and algorithms.
• Debugging and Programming: The STEVAL-CCM003V1 supports JTAG debugging and has an onboard EEPROM for user convenience. This makes it easier for developers to program the microcontroller and debug their applications.
• Power Supply: An efficient power supply circuit is integrated into the board, ensuring stable operation of the microcontroller and peripherals during testing and application development.

Applications:

The STEVAL-CCM003V1 is suitable for a wide range of automotive applications, including but not limited to:

• Body control modules
• Gateway systems
• Advanced driver-assistance systems (ADAS)
• Automotive sensor interfaces
• General automotive control units

With its extensive features and connectivity options, the STEVAL-CCM003V1 evaluation board is an invaluable tool for automotive system designers and engineers looking to leverage the advanced capabilities of the SPC58EC80E5 Chorus microcontroller in their next-generation vehicle systems.
