Products specifications

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Series STM32
Package Box
Product Status Obsolete
Outputs and Type 16, Non-Isolated
Voltage - Input 7.5V ~ 18V
Supplied Contents Board(s)
Utilized IC / Part STP1612PW05
Other Names 497-13320,STEVALILL028V1
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1283825-STEVAL-ILL028V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-ILL028V1 CAD Model

Description

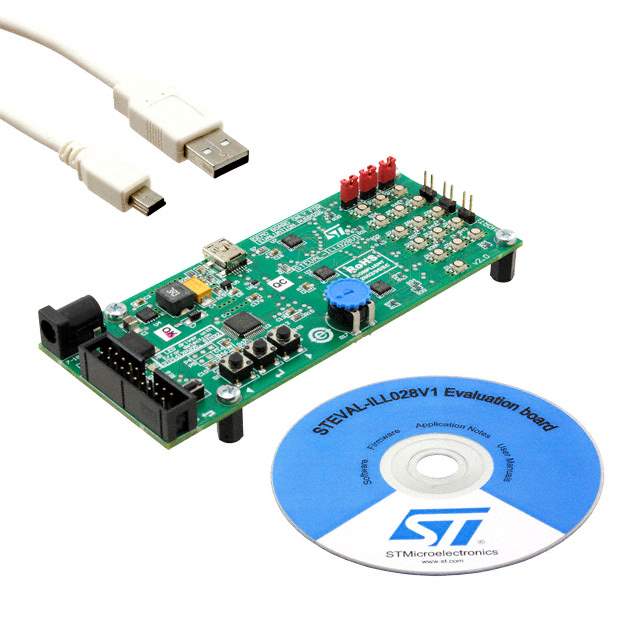

STEVAL-ILL028V1 - LED Array Driver Evaluation Board from STMicroelectronics

The STEVAL-ILL028V1 is a cutting-edge evaluation board designed by STMicroelectronics, specifically engineered for driving LED arrays. This evaluation board is an excellent tool for designers and engineers who are looking to explore the capabilities and performance of STMicroelectronics' LED driving technology, particularly for applications requiring high-brightness LED lighting solutions.

At the heart of the STEVAL-ILL028V1 is the STP16CP05MTR, a monolithic, low voltage, low current power 16-bit shift register designed for LED panel displays. The device contains a 16-bit serial-in, parallel-out shift register that feeds a 16-bit, D-type storage register. In the output stage, sixteen regulated current sources were designed to provide 5-100 mA constant current to drive the LEDs.

The evaluation board's capability to ensure uniform brightness across all LEDs, coupled with its ability to adjust the current through each LED, makes it particularly suitable for creating sophisticated lighting effects and for use in applications where consistent illumination quality is crucial. Additionally, the board's thermal management is optimized through the use of a dedicated heat sink, ensuring reliable operation even under high-power scenarios.

The STEVAL-ILL028V1 also features flexible control options. Users can interface with the board through a standard SPI interface, allowing for easy integration with a microcontroller or other control hardware. This makes the board highly adaptable and capable of being incorporated into a wide range of LED lighting applications, such as architectural lighting, signage, and mood lighting.

Overall, the STEVAL-ILL028V1 evaluation board is a robust platform for developing and testing high-performance LED array applications. With its advanced features, it provides an ideal solution for R&D professionals looking to harness the power of STMicroelectronics LED driving technology to create innovative lighting solutions.
