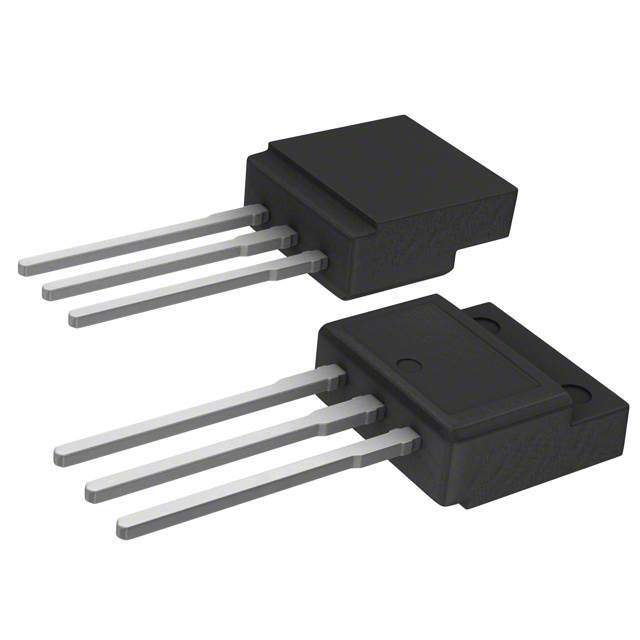

STFI40N60M2 - Power MOSFET by STMicroelectronics

The STFI40N60M2 is a state-of-the-art MDmesh™ M2 Power MOSFET designed and manufactured by STMicroelectronics. This device is built using an advanced mesh overlay process, which provides an optimal combination of low on-resistance, high blocking voltage, and excellent switching performance, making it well-suited for a wide range of high-efficiency applications.

Key Features:

• High Voltage Capability: The STFI40N60M2 is capable of handling voltages up to 600V, making it ideal for high voltage power conversion systems.
• Low On-Resistance (R<sub>DS(on)): With an on-resistance as low as 0.085 Ω, this MOSFET ensures minimal power loss during operation, enhancing overall system efficiency.
• Fast Switching Speed: The fast switching characteristics of this device reduce switching losses and improve the performance of power converters.
• High Current Rating: This MOSFET can handle a continuous drain current of up to 40A, making it suitable for high-power applications.
• Enhanced dv/dt Capability: The device is engineered to withstand high dv/dt rates, ensuring reliability under harsh switching conditions.
• 100% Avalanche Tested: Each unit is rigorously tested for avalanche ruggedness, which guarantees robustness and long-term reliability.

Applications:

The STFI40N60M2 is versatile and can be used in a variety of applications, including:

• Switch Mode Power Supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• Power Factor Correction (PFC) circuits
• High-performance DC/DC converters
• LED Lighting applications
• Welding and Induction Heating

STMicroelectronics' commitment to quality and innovation is reflected in the STFI40N60M2 Power MOSFET. It is designed to meet the stringent requirements of modern power electronic systems, providing designers with a reliable and efficient solution for their high-voltage, high-power applications.
