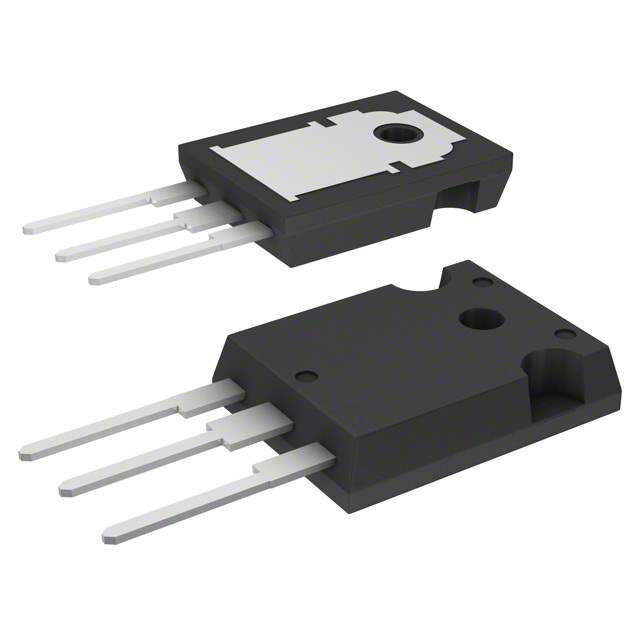

STW13NM60N Power MOSFET Overview

The STW13NM60N is a high-performance Power MOSFET produced by STMicroelectronics, a global semiconductor leader known for its cutting-edge technology. This particular MOSFET is part of the MDmesh™ series, which is renowned for its excellent energy efficiency and reduced on-resistance. The STW13NM60N is designed to cater to a wide range of applications, including switch-mode power supplies (SMPS), lighting, welding, and high-performance drives.

Key Features

• Advanced Technology: The STW13NM60N employs STMicroelectronics' innovative MDmesh™ technology, which combines a vertical structure with a proprietary strip layout to achieve outstanding on-resistance and high-speed switching performance.
• High Voltage Capability: This MOSFET can handle high voltages, with a drain-source voltage (V<sub>DS) of 600V, making it suitable for applications that require high voltage operations.
• Low On-Resistance: With a typical on-resistance (R<sub>DS(on)) of just 0.29Ω, this device ensures minimal power loss during operation, enhancing overall efficiency.
• High Current Capacity: It supports a continuous drain current (I<sub>D) of up to 11A, making it capable of handling high current loads.
• Reduced Gate Charge: A low gate charge (Q<sub>g) reduces the power required to turn the MOSFET on and off, which in turn minimizes switching losses.
• 100% Avalanche Tested: This product is guaranteed to withstand rugged operating conditions, as each unit is thoroughly tested for avalanche ruggedness.
• Compliance: The STW13NM60N is compliant with the RoHS directive and is free from environmentally hazardous substances.

Applications

The versatility of the STW13NM60N MOSFET makes it an ideal choice for a broad range of power applications. It is particularly well-suited for:

• High-efficiency switch-mode power supplies (SMPS)
• Power factor correction circuits (PFC)
• Electronic ballasts for lighting
• DC-AC inverters for solar energy systems
• Motor control and drives
• Uninterruptible power supplies (UPS)

With its robust design and state-of-the-art technology, the STW13NM60N is a reliable and efficient solution for designers looking to improve power performance in their applications.
