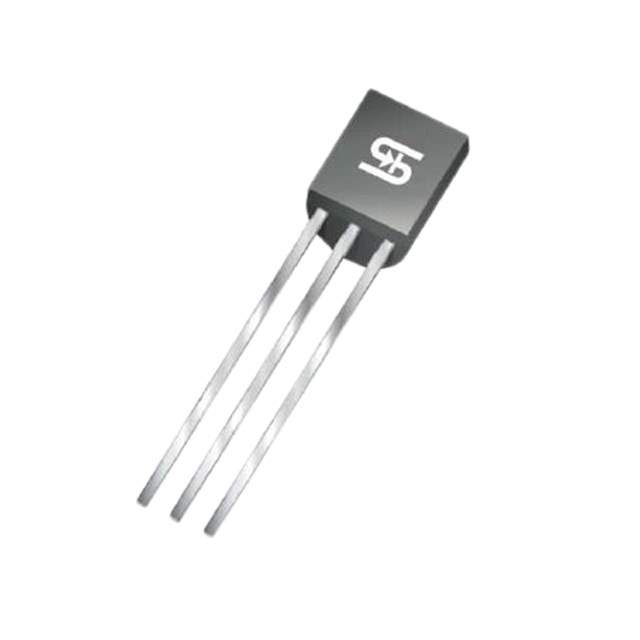

BC338-40 B1G Real Image
Same model may have multiple batches, images only for reference.

BC338-40 B1G

Part No BC338-40 B1G
Manufacturer Taiwan Semiconductor
Catalog Transistors (BJT) - Single
Description TRANSISTOR, NPN, 25V, 0.8A, 250A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Status Active
Transistor Polarity NPN
Maximum Current Collector 800mA
VCEO Maximum Collector-Emitter Breakdown Voltage 25V
Max Vce (sat) 700mV @ 50mA, 500mA
Collector Cut-off Current(Max) 100nA (ICBO)
Maximum Power Dissipation 625mW
Frequency - Transition 100MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-92
Win Source Part Number 1022344-BC338-40 B1G
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BC338-40 B1G CAD Model

Description

The BC338-40 B1G is a discrete semiconductor product manufactured by Taiwan Semiconductor.

  • Transistor Type: NPN
  • Operating Temperature: -55°C to 150°C (TJ)
  • Maximum Current Collector: 800mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 25V
  • Maximum Power Dissipation: 625mW
  • Collector Cut-off Current: 100nA (ICBO)
  • Case/Package: TO-92
  • Maximum Vce(sat): 700mV @ 50mA, 500mA
