Same model may have multiple batches, images only for reference.

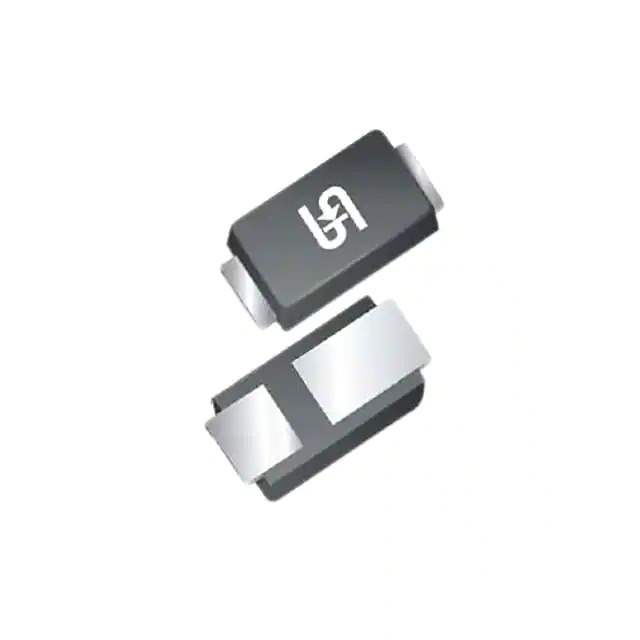

S1GM Real Image
Same model may have multiple batches, images only for reference.

S1GM

Part No S1GM
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 400V 1A MICRO SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 780 ns
Current - Reverse Leakage @ Vr 1 µA @ 400 V
Capacitance @ Vr, F 5pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case 2-SMD, Flat Lead
Supplier Device Package Micro SMA
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number S1G
Standard Package 12,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 662311-S1GM
Ultra Librarian 3D Model Ultra Librarian S1GM CAD Model

Description

The 662311-S1GM is a standard recovery single diode designed for rectification applications in electronic circuits. Taiwan Semiconductor manufactures it.

  • Type: Standard Recovery Single Diode
  • Application: Rectification
  • Voltage Rating: 400V
  • Forward Voltage Drop: 1.1V @ 1A
  • Reverse Recovery Time: 780ns
  • Maximum Reverse Leakage Current: 1μA @ 400V
  • Mounting: Surface Mount
  • Standard Package: 12,000 pcs
  • Status: Active
