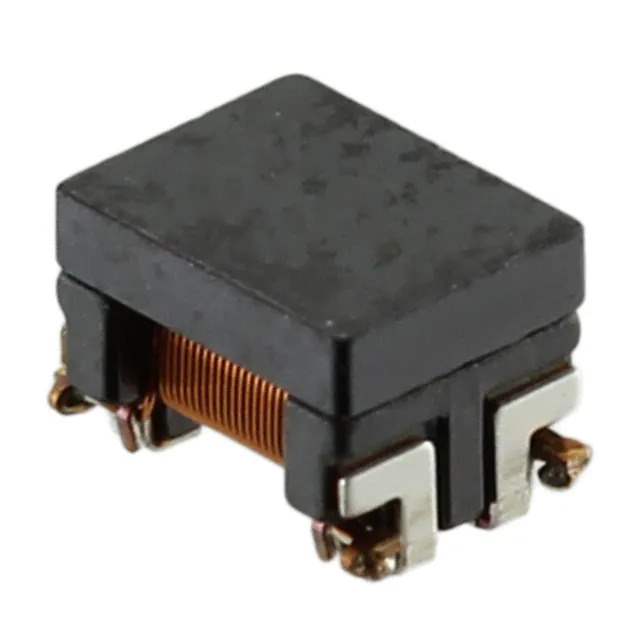

ACT1210-220-2P-TL00 Real Image
Same model may have multiple batches, images only for reference.

ACT1210-220-2P-TL00

Part No ACT1210-220-2P-TL00
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 22UH 250MA 2LN 1.1KOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr TDK Corporation
Series ACT
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 1.1 kOhms @ 10 MHz
Inductance @ Frequency 22 µH @ 100 kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 500mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -55°C ~ 150°C
Ratings AEC-Q200
Mounting Type Surface Mount
Size / Dimension 0.154" L x 0.098" W (3.90mm x 2.50mm)
Height (Max) 0.098" (2.50mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 6,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 846318-ACT1210-220-2P-TL00
Ultra Librarian 3D Model Ultra Librarian ACT1210-220-2P-TL00 CAD Model

Description

The TDK Corporation 846318-ACT1210-220-2P-TL00 is a common mode choke in the ACT series.

  • Voltage - Rated DC: 80V
  • Size / Dimension: 0.154" L x 0.098" W (3.90mm x 2.50mm)
  • Height - Seated (Max): 0.098" (2.50mm)
  • Current - Max: 250mA
  • Standard Package Quantity: 6,000 pcs
  • Filtering: Signal Line
  • Number of Lines: 2
  • Impedance @ Frequency: 1.1 kOhms @ 10 MHz
  • Inductance @ Frequency: 22 µH @ 100 kHz
  • Mounting Type: Surface Mount
  • Package / Case: Horizontal, 4 PC Pad
  • Operating Temperature: -55°C to 150°C
  • Manufacturer: TDK Corporation
  • Product Status: Active
  • REACH Status: Unaffected
