Same model may have multiple batches, images only for reference.

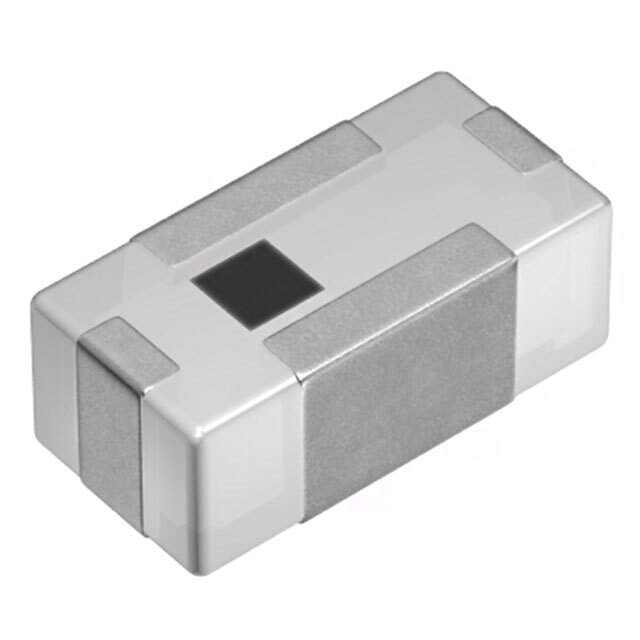

DEA162495BT-1289A1 Real Image
Same model may have multiple batches, images only for reference.

DEA162495BT-1289A1

Part No DEA162495BT-1289A1
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER BANDPASS 2.495GHZ 0603 / Multilayer Band Pass Filter
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Frequency 2.495GHz Center
Bandwidth 390MHz
Filter Type Band Pass
Insertion Loss 2dB
Mounting Style SMD
Manufacturer Package 0603, 4 PC Pad
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Maximum) 0.028"
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801748-DEA162495BT-1289A1
Ultra Librarian 3D Model Ultra Librarian DEA162495BT-1289A1 CAD Model

Description

The TDK DEA162495BT-1289A1 is a bandpass filter with a frequency of 2.495GHz center.

  • Bandwidth: 390MHz
  • Insertion Loss: 2dB
  • Mounting Type: SMD
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height: 0.028"
  • Package: 0603
  • PC Pads: Four
