Same model may have multiple batches, images only for reference.

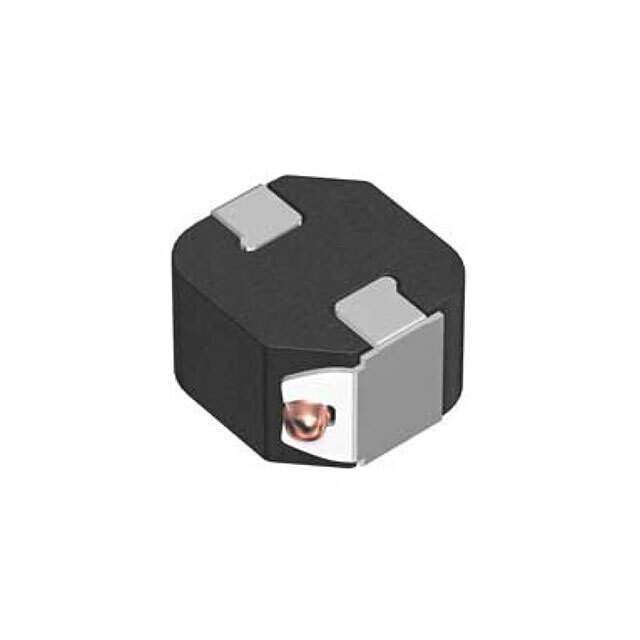

SPM4030T-2R2M Real Image
Same model may have multiple batches, images only for reference.

SPM4030T-2R2M

Part No SPM4030T-2R2M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 4.8A 40.15 MOHM / 2.2 µH Shielded Drum Core, Wirewound Inductor 4.8 A 40.15mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 4.8 A
Current - Saturation (Isat) 3.2A
Shielding Shielded
DC Resistance (DCR) 40.15mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.165" L x 0.157" W (4.20mm x 4.00mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-175211-1,445-175211-6,445-175211-2
Standard Package 500
Win Source Part Number 1095655-SPM4030T-2R2M
Ultra Librarian 3D Model Ultra Librarian SPM4030T-2R2M CAD Model

Description

The SPM4030T-2R2M is a fixed inductor. TDK Corporation manufactures this component with an inductance of 2.2 µH.

  • Type: drum core, wirewound
  • Package/Case: nonstandard
  • Packaging: tape and reel
  • Shielded: Yes
  • Tolerance: ±20%
  • Core Material: metal
  • DC Resistance (DCR): 40.15mOhm Max
  • Height: 0.118" (3.00mm)
  • Dimension: 0.165" L x 0.157" W (4.20mm x 4.00mm)
  • Current Rating: 4.8 A
  • Current - Saturation (Isat): 3.2 A
  • Temperature Range: -40°C to 125°C
