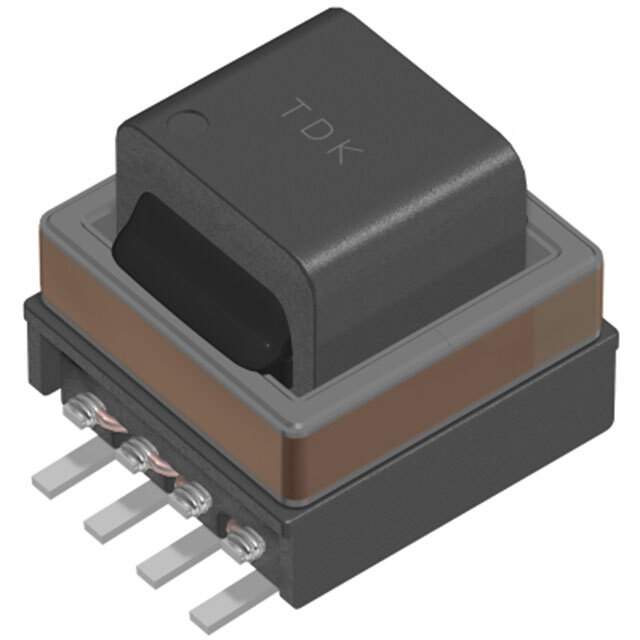

VGT10/9EE-X03S2P4 Real Image
Same model may have multiple batches, images only for reference.

VGT10/9EE-X03S2P4

Part No VGT10/9EE-X03S2P4
Manufacturer TDK Corporation
Catalog Pulse Transformers
Description PULSE TRANSFORMERS FOR BMS (BATT / 350µH Pulse Transformer 1:1:1:1 Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr TDK Corporation
Series VGT
Package Tape & Reel
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Max) 0.417" (10.60mm)
Temperature Range - Operating -40°C ~ 130°C
Standard Package 250
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1336890-VGT10/9EE-X03S2P4
Ultra Librarian 3D Model Ultra Librarian VGT10/9EE-X03S2P4 CAD Model

Description

The TDK Corporation VGT10/9EE-X03S2P4 is a pulse transformer with a package of tape and reel. TDK Corporation

  • Type: Pulse Transformer
  • Package: Tape and Reel
  • Size/Dimension: 0.409" L x 0.409" W (10.40mm x 10.40mm)
  • Inductance: 350µH
  • Mounting Type: Surface Mountable
  • Temperature Range: -40°C to 130°C
  • MSL Level: 1 (unlimited)
  • ET (Volt-Time): -
  • HTSUS: 8504.31.2000
