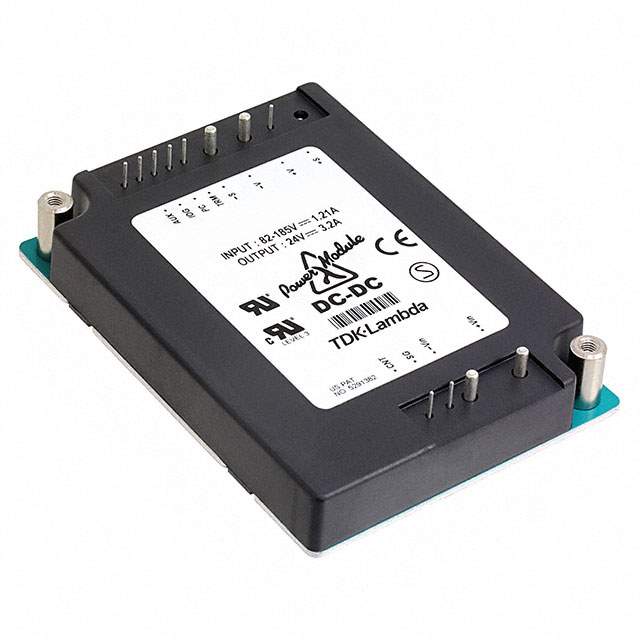

PH75F483 Real Image
Same model may have multiple batches, images only for reference.

PH75F483

Part No PH75F483
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount Modules
Description Module DC-DC 1-OUT 3V 15A 45W 12-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Module
Current - Output 1 15 A
Features OCP, OVP
Height 12.7 mm
Isolation Voltage 3 kV
Length 61.976 mm
Max Input Voltage 76 V
Maximum Operating Temperature 85 °C
Max Output Current 15 A
Max Power Dissipation 45 W
Min Input Voltage 36 V
Min Operating Temperature -20 °C
Mount Through Hole
Number of Outputs 1
Number of Pins 12
Output Current 15 A
Output Power 45 W
Output Voltage 3 V
Packaging Bulk
RoHS Compliant
Voltage - Output 1 3.3 V
Width 85.852 mm
Win Source Part Number 1031240-PH75F483
Categories Board Mount Modules
Manufacturer TDK-Lambda Americas Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian PH75F483 CAD Model

Description

The TDK-Lambda Americas Inc. PH75F483 is a 45 W, 3.3 V output, 15 A current output, single output DC-DC converter module designed for use in a variety of applications including telecommunications, industrial control, and test and measurement equipment.

  • Output Power: 45 W
  • Output Voltage: 3.3 V
  • Output Current: 15 A
  • Output(s): Single
  • Maximum Input Voltage: 76 V
  • Minimum Input Voltage: 36 V
  • Protection: Overcurrent protection and overvoltage protection
  • Package: Bulk
  • Mounting: Supplied on a reel
  • Alternative Parts: Available
