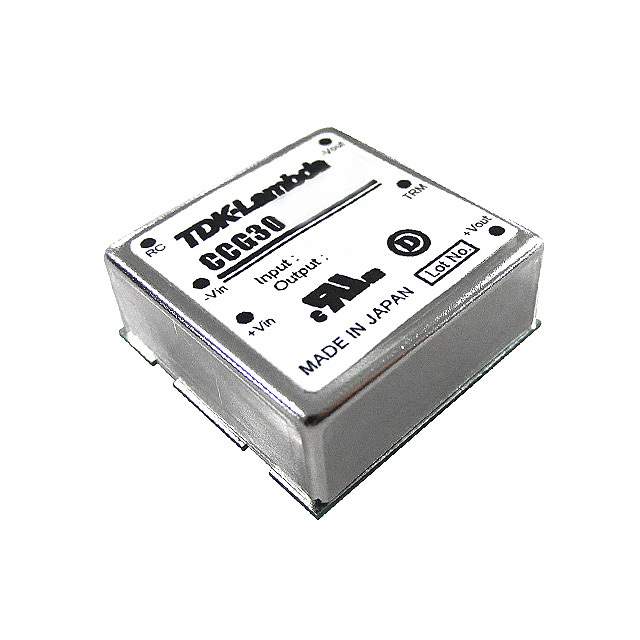

CCG30-24-05S Real Image
Same model may have multiple batches, images only for reference.

CCG30-24-05S

Part No CCG30-24-05S
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 30W / Isolated Module DC DC Converter 1 Output 5V 6A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CCG30 (30W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 6A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features Enable, Active Low
Base Product Number CCG30
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1337216-CCG30-24-05S
Ultra Librarian 3D Model Ultra Librarian CCG30-24-05S CAD Model

Description

The TDK-Lambda Americas Inc CCG30-24-05S is a 30W isolated module DC-DC converter with a remote On/Off, OCP, and OVP features.

  • Type: Isolated Module
  • Number of Outputs: 1
  • Voltage - Input (Min): 9V
  • Voltage - Input (Max): 36V
  • Voltage - Output 1: 5V
  • Current - Output (Max): 6A
  • Power (Watts): 30W
  • Applications: ITE (Commercial)
  • Features: Remote On/Off, OCP, OVP
  • Efficiency: 89%
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Through Hole
  • Package / Case: 6-DIP Module
  • Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
  • ECCN: EAR99
  • HTSUS: 8504.40.9580
