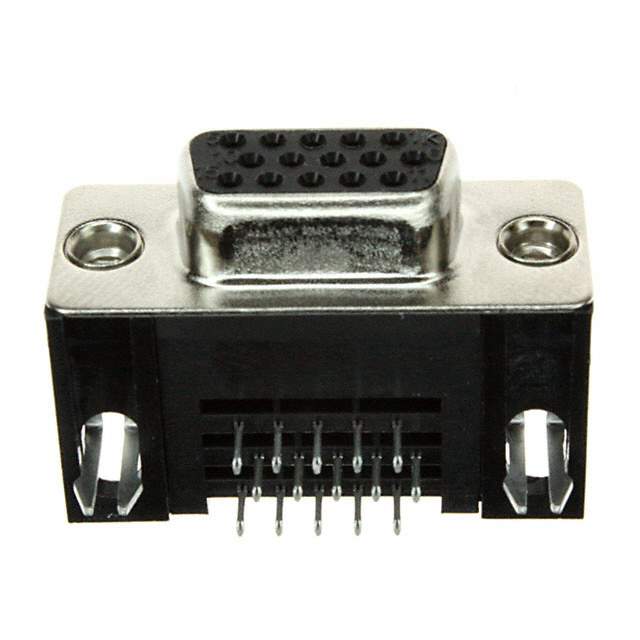

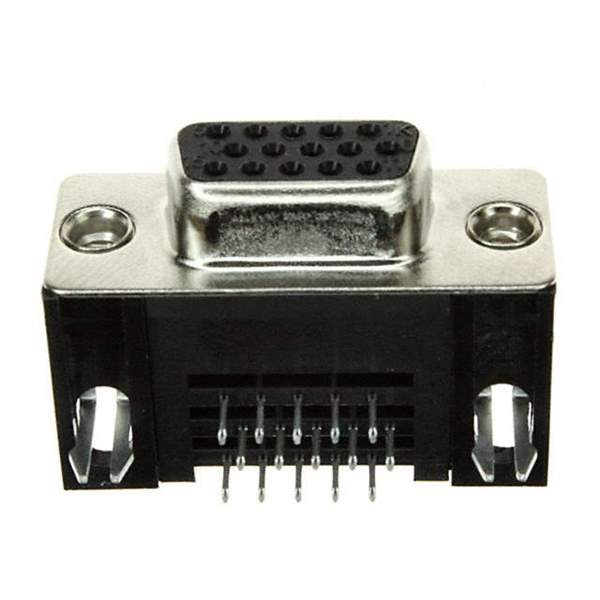

1-1734530-1 Real Image
Same model may have multiple batches, images only for reference.

1-1734530-1

Part No 1-1734530-1
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-22
Package Tray
Product Status Obsolete
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Backset Spacing 0.350" (8.89mm)
Features Board Lock
Voltage Rating 125V
Color Black
Dielectric Material Polyamide (PA9T), Nylon 9T
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 1734530
Other Names 117345301,A35116,-1-1734530-1-SI
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294108-1-1734530-1
Ultra Librarian 3D Model Ultra Librarian 1-1734530-1 CAD Model

Description

The TE Connectivity AMP Connectors is an obsolete electronic component with a base product number of 1734530.

  • Base Product Number: 1734530
  • Win Source Part Number: 1294108-1-1734530-1
  • Series: AMPLIMITE HD-22
  • Connector Type: Receptacle, Female Sockets
  • Contact Type: Signal
  • Shell Size: 1 (DE, E) High Density
  • Voltage Rating: 125V
  • Current Rating: 2A
  • Package: Tray
  • Temperature Range: -55°C to 105°C
