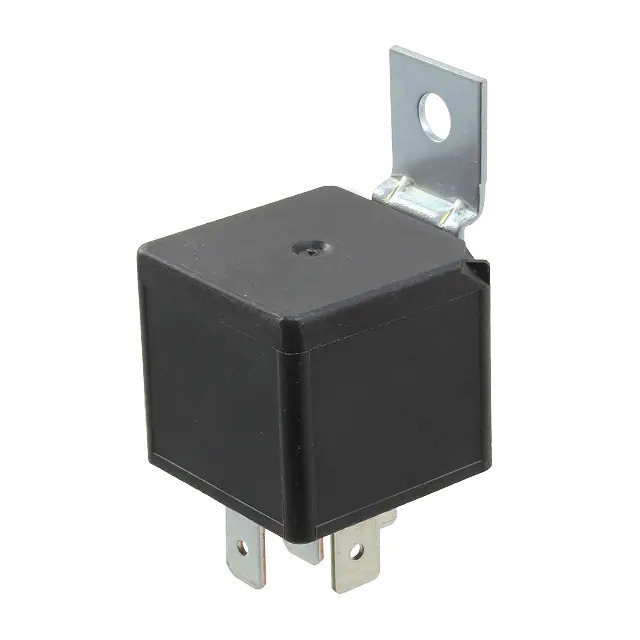

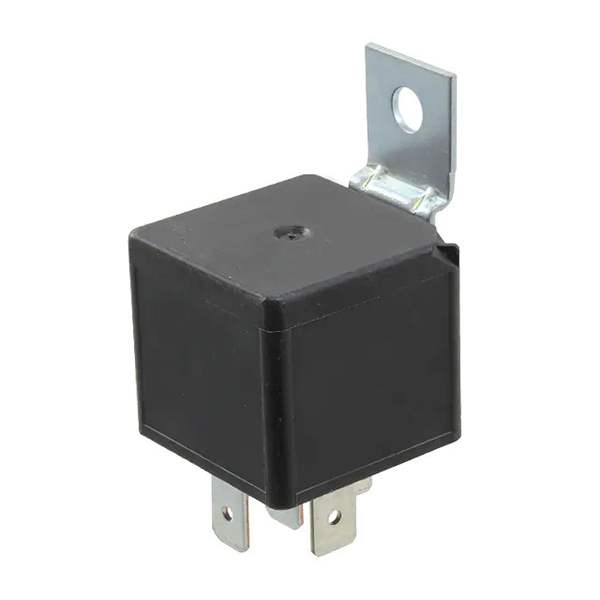

1432797-1 TE Connectivity
Same model may have multiple batches, images only for reference.

1432797-1

Part No 1432797-1
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 30A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series VF4
Package Bulk
Product Status Obsolete
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 30 A
Switching Voltage 14VDC - Nom
Coil Current 66.7 mA
Coil Type Non Latching
Features -
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Seal Rating -
Coil Insulation -
Must Operate Voltage 15.6 VDC
Must Release Voltage 2.4 VDC
Operate Time 8 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number 1432797
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373453-1432797-1
Ultra Librarian 3D Model Ultra Librarian 1432797-1 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays VF4 series power relay is a reliable and versatile component for various applications.

  • Coil Voltage: 24VDC
  • Contact Form: SPDT (1 Form C)
  • Current Rating: 30A
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Termination Style: Plug-In, Quick Connect 0.250" (6.3mm)
  • Mounting Type: Chassis Mount
  • Must Operate Voltage: 15.6VDC
  • Must Release Voltage: 2.4VDC
  • Operate Time: 8ms
  • Release Time: 5ms
  • Application: General Purpose
  • Product Status: Obsolete
