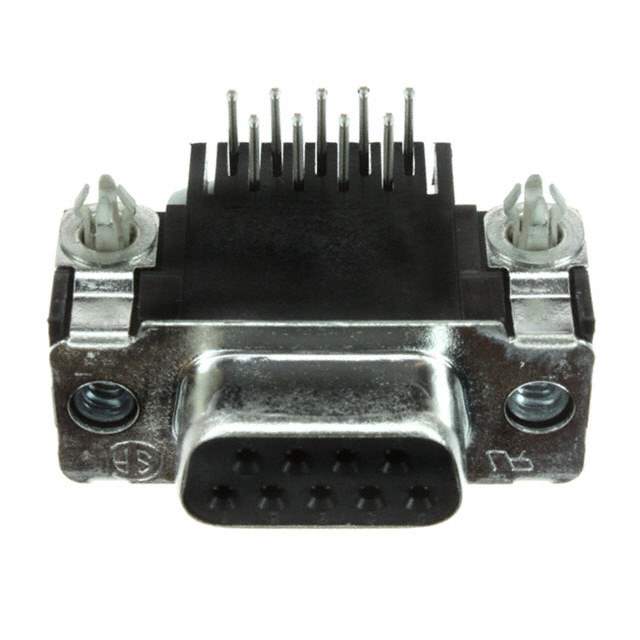

5747836-4 Real Image
Same model may have multiple batches, images only for reference.

5747836-4

Part No 5747836-4
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 9POS R/A SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tube
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.590" (14.99mm)
Features Board Lock, Ground Strap
Voltage Rating 125V
Color Black
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747836
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A32138,57478364,2266-5747836-4
Standard Package 17
Win Source Part Number 1013624-5747836-4
Ultra Librarian 3D Model Ultra Librarian 5747836-4 CAD Model

Description

The AMPLIMITE HD-20 series connector from TE Connectivity AMP Connectors is a D-Sub connector with 9 positions and a black color.

  • Positions: 9
  • Color: Black
  • Features: Board Lock, Ground Strap
  • Connector Type: Receptacle, Female Sockets
  • Contact Type: Signal
  • Rows: 2
  • Termination: Solder
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Tube
  • Voltage Rating: 125V
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 17
  • Flange Feature: Housing/Shell (4-40)
  • Shell Material: Steel
  • Shell Finish: Tin Plated
  • Mounting: Through-Hole, Right-Angle
  • Temperature Range: -55°C ~ 105°C
  • Backset Spacing: 0.590" (14.99mm)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating (amps): 6A
  • REACH Status: Vendor Undefined
  • HTSUS: 8536.69.4040
