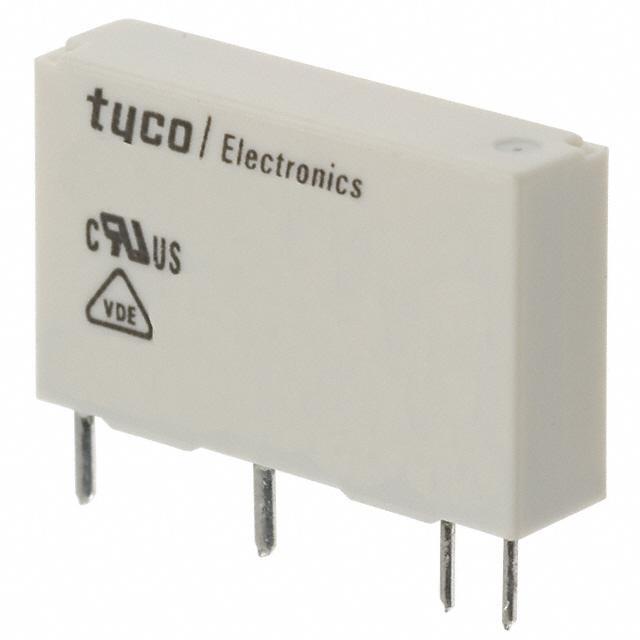

PCN-105D3MHZ TE Connectivity PCN-105D3MHZ Real Image
Same model may have multiple batches, images only for reference.
PCN-105D3MHZ TE Connectivity PCN-105D3MHZ Real Image
PCN-105D3MHZ TE Connectivity PCN-105D3MHZ Real Image
Same model may have multiple batches, images only for reference.

PCN-105D3MHZ

Part No PCN-105D3MHZ
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE SPST 3A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 24mA
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3A
Switching Voltage 277VAC, 125VDC - Max
Turn On Voltage (Max) 3.5 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 8ms
Release Time 3ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 120 mW
Coil Resistance 208 Ohms
Temperature Range - Operating -30°C to 70°C
Win Source Part Number 271136-PCN-105D3MHZ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PCN-105D3MHZ CAD Model

Description

The 271136-PCN-105D3MHZ is a general-purpose relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Contact Configuration: SPST-NO
  • Contact Rating: 3A
  • Coil Voltage: 5VDC
  • Coil Resistance: 208 Ohms
  • Coil Current: 24mA
  • Switching Voltage: 277VAC, 125VDC - Max
  • Turn-on Voltage: 3.5VDC
  • Turn-off Voltage: 0.5VDC
  • Design: Sealed, fully-featured
  • Package: Through-hole
  • Termination: PC pin
  • Popularity: High
