PE014024 TE Connectivity PE014024 real image4618
Same model may have multiple batches, images only for reference.
PE014024 TE Connectivity PE014024 real image4618
PE014024 TE Connectivity PE014024 real image4618
Same model may have multiple batches, images only for reference.

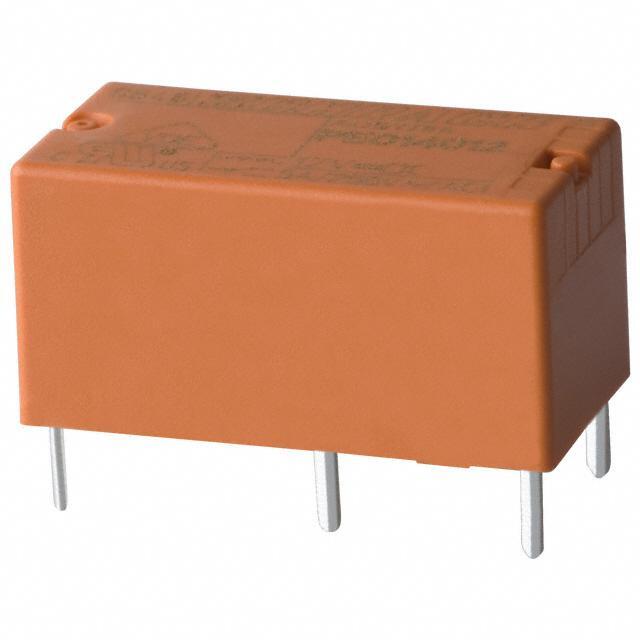

PE014024

Part No PE014024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 5A 24V
Datasheet
PE014024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 8.8mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 5A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 8ms
Release Time 8ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 211 mW
Coil Resistance 2.73 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 037616-PE014024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Industrial, Power Management, Automation & Process Control
Ultra Librarian 3D Model Ultra Librarian PE014024 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays are high-quality general-purpose relays that are designed for use in industrial, power management, automation, and process control applications.

  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 5A
  • Mounting: through-hole relay
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.73 kOhms
  • Switching Voltage: 400VAC - Max
  • Turn-On Voltage (max): 18 VDC
  • Status: active
  • Popularity: high
