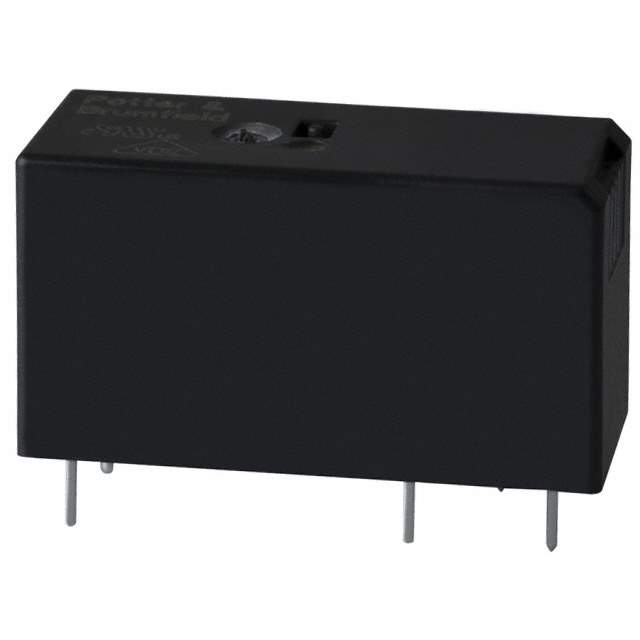

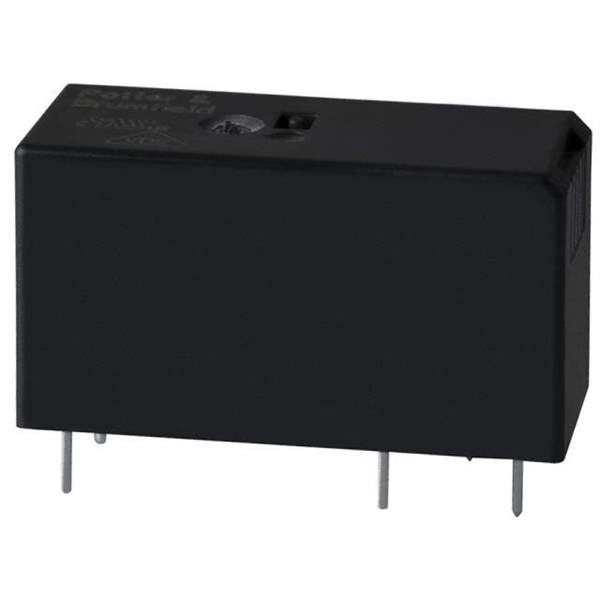

RTB14005 Real Image
Same model may have multiple batches, images only for reference.

RTB14005

Part No RTB14005
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 12A 5V / General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series RT1, SCHRACK
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12 A
Switching Voltage 400VAC - Max
Coil Current 80.6 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 8 ms
Release Time 6 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 62 Ohms
Base Product Number RTB14
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Other Names 1-1393238-2,RTB14005-ND,PB1799,-RTB14005-SI
Standard Package 20
Win Source Part Number 1089252-RTB14005
Ultra Librarian 3D Model Ultra Librarian RTB14005 CAD Model

Description

The RTB14005 is a general-purpose power relay from TE Connectivity Potter & Brumfield Relays. RTB14005 is from TE Connectivity Potter & Brumfield Relays

  • Contact Form: single-pole double-throw (SPDT)
  • Coil Voltage: 5VDC
  • Package: tube package (20 relays)
  • Mounting: through hole technology
  • Switching Voltage: 400VAC - Max
  • Contact Rating: 12 A
  • Seal Rating: sealed - fully
